Ignition Lock Key Transmitter Antenna Replacement - Floor Console

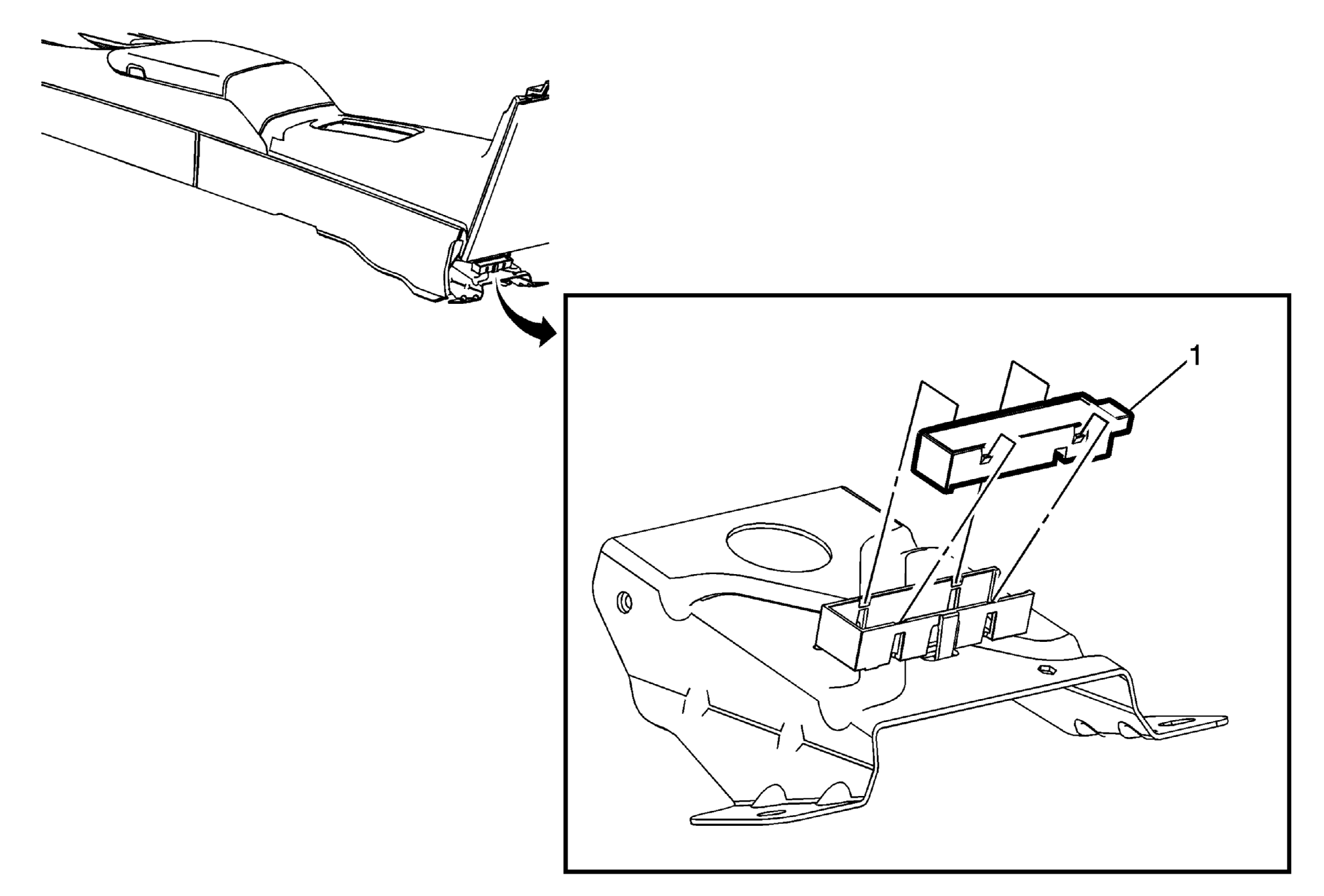

Fig 1: Ignition Lock Key Transmitter Antenna - Floor Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear floor console. Refer to Rear Floor Console Replacement .
1	Ignition Lock Key Transmitter Antenna Procedure Disconnect the electrical connector. Unsnap antenna from the floor console bracket.

Callout

Component Name

Preliminary Procedure
Remove the rear floor console. Refer to Rear Floor Console Replacement .

Ignition Lock Key Transmitter Antenna

Procedure
