Driver or Passenger Seat Adjuster Memory Module Replacement

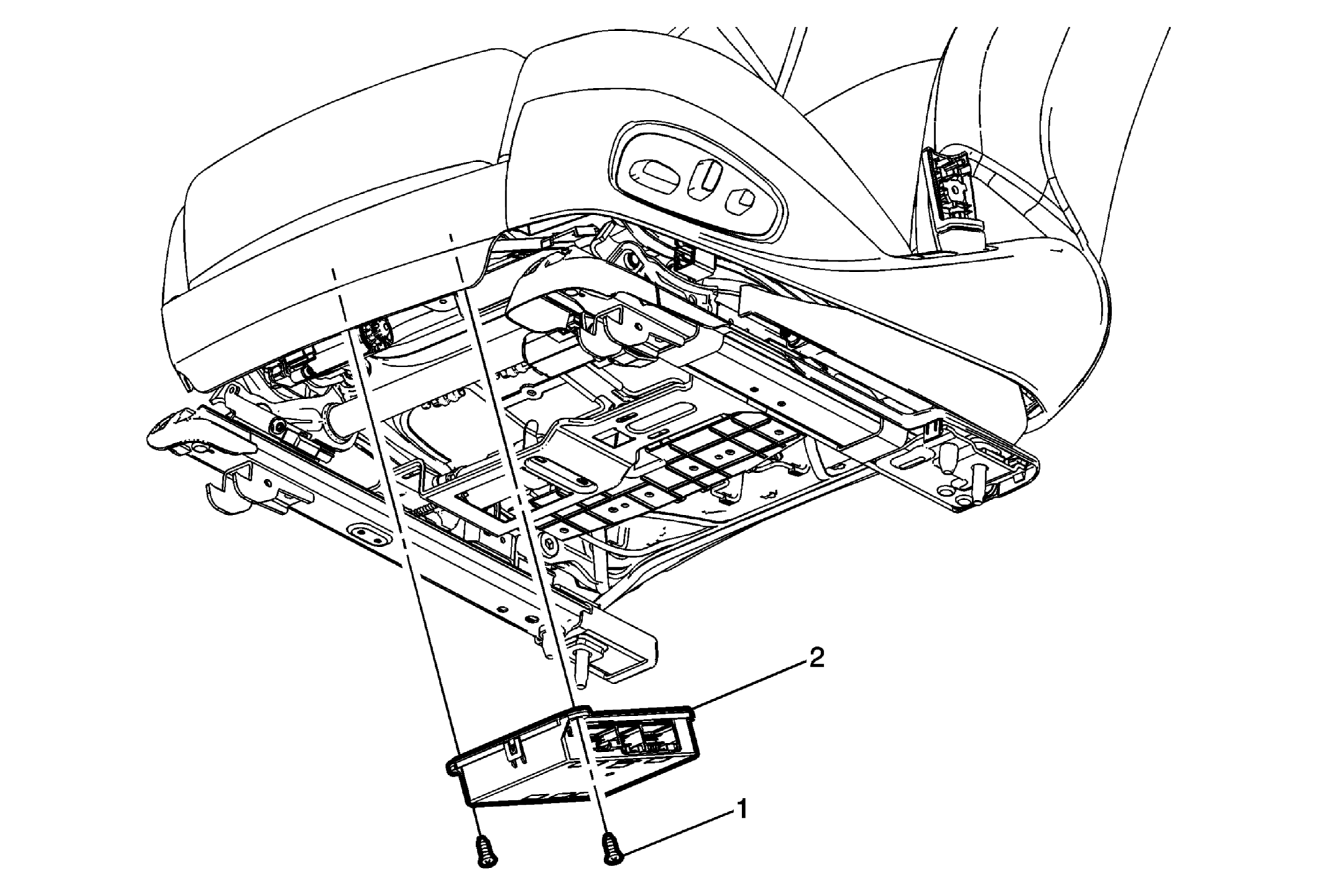

Fig 1: Driver or Passenger Seat Adjuster Memory Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat . Refer to Driver or Passenger Seat Removal and Installation .
1	Driver or Passenger Seat Adjuster Memory Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Driver or Passenger Seat Adjuster Memory Module Procedure Disconnect the electrical connectors. Remove the module from the adjuster memory and wiring harness bracket. Refer to Control Module References for programing and setup information.

Callout

Component Name

Preliminary Procedure
Remove the driver or passenger seat . Refer to Driver or Passenger Seat Removal and Installation .

Driver or Passenger Seat Adjuster Memory Module Fastener (Qty: 2)

CAUTION:

Driver or Passenger Seat Adjuster Memory Module

Procedure
