Front Side Door Window Weatherstrip Replacement

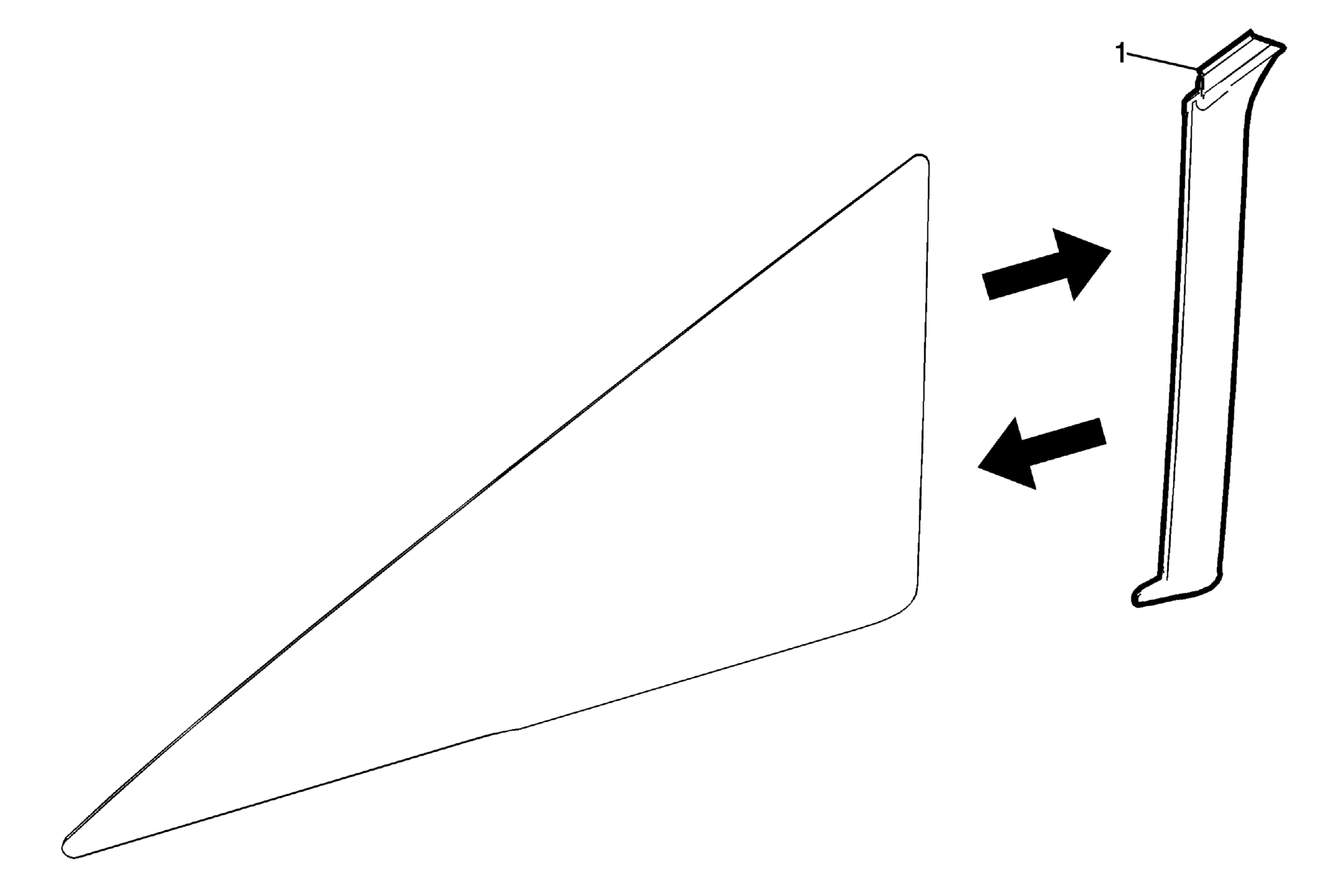

Fig 1: Front Side Door Window Weatherstrip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door opening frame reveal molding. Refer to Front Side Door Opening Frame Reveal Molding Replacement . Remove the windshield pillar stationary window. Refer to Windshield Pillar Stationary Window Replacement .
1	Front Side Door Window Weatherstrip Procedure Slide the weatherstrip rearward to remove from the stationary window.

Callout

Component Name

Preliminary Procedures

Remove the front side door opening frame reveal molding. Refer to Front Side Door Opening Frame Reveal Molding Replacement .
Remove the windshield pillar stationary window. Refer to Windshield Pillar Stationary Window Replacement .

Front Side Door Window Weatherstrip
Procedure
Slide the weatherstrip rearward to remove from the stationary window.
