Front Wheel Housing Components - Left

Front Wheel Housing Components - Left

Items
1:  K20 Engine Control Module K20 Engine Control Module X1K20 Engine Control Module X2K20 Engine Control Module X3
2:  P12L Horn - Left P12L Horn - Left
3:  B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch
4:  G35 Hybrid/EV Electronics Coolant Pump G35 Hybrid/EV Electronics Coolant Pump

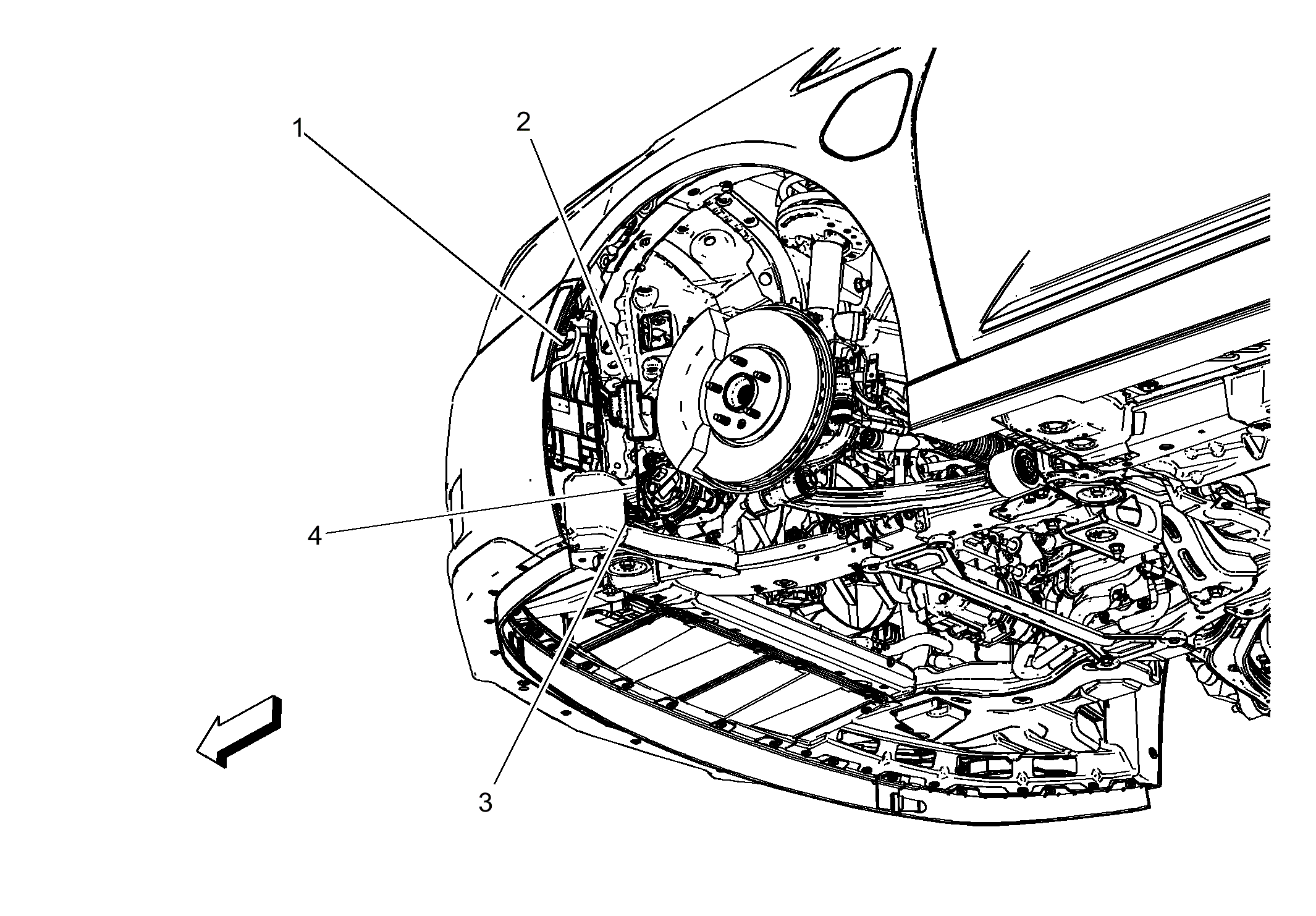

Fig 1: Front Wheel Housing Components - Left

Courtesy of GENERAL MOTORS COMPANY
