Steering Linkage Inner Tie Rod Replacement

Preliminary Procedures

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Remove the steering gear boot. Refer to Steering Gear Boot Replacement .
3. After removing the steering gear boot, inspect the steering linkage inner tie rod for evidence of corrosion or contamination. If none is evident, continue with the repair. If corrosion or contamination is evident, replace the steering gear. Refer to Electric Dual Pinion Rack and Pinion Steering Gear Replacement .

Procedure

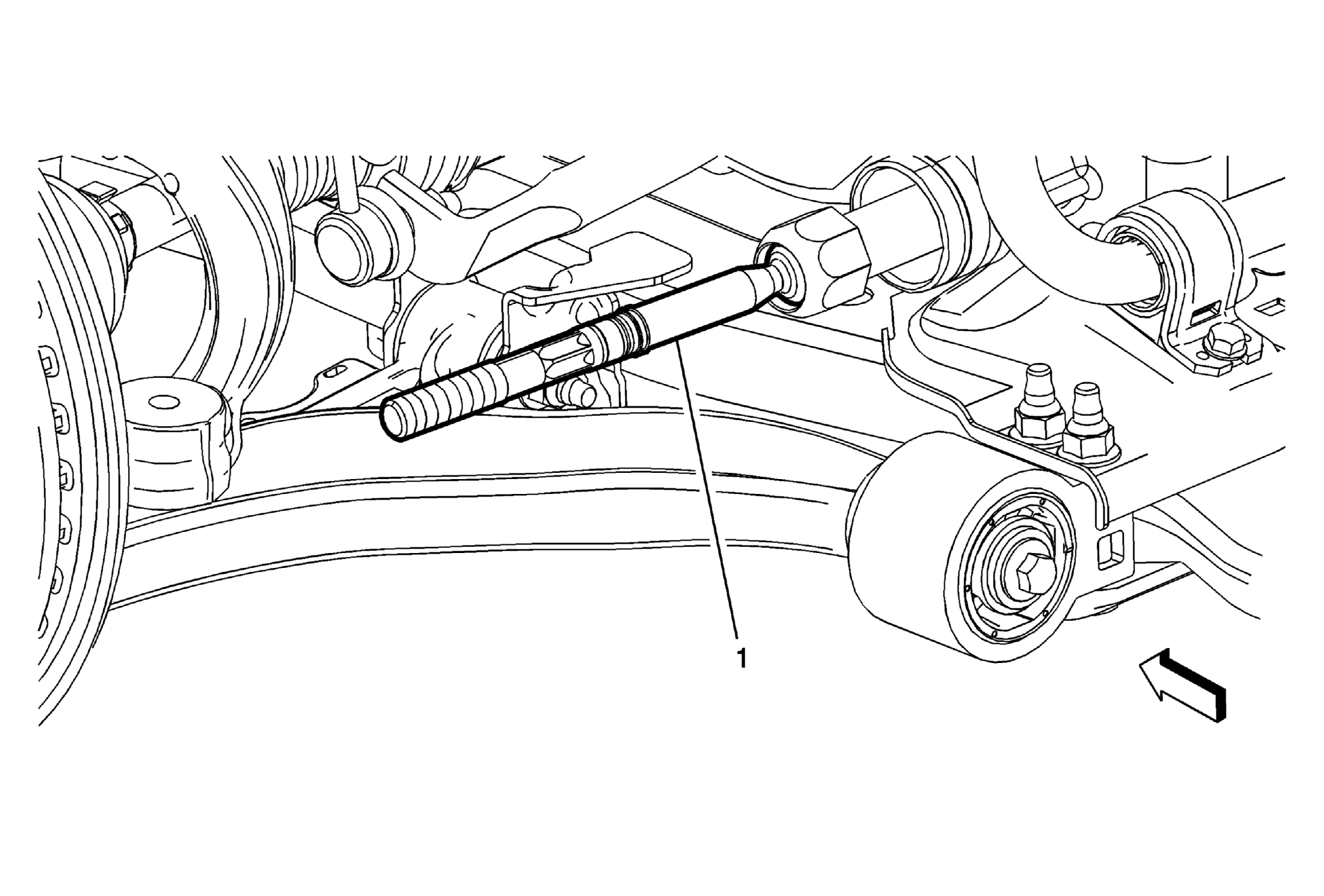

1. Place a wrench on the flats of the steering linkage inner tie rod housing.
2. Rotate the steering linkage inner tie rod housing counterclockwise to remove the steering linkage inner tie rod from the steering gear rack.
3. Rotate the steering linkage inner tie rod housing clockwise to install the steering linkage inner tie rod to the steering gear rack. Use the CH-6321  wrench and a torque wrench to tighten the steering linkage inner tie rod to specification.
4. Measure and adjust the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment .
