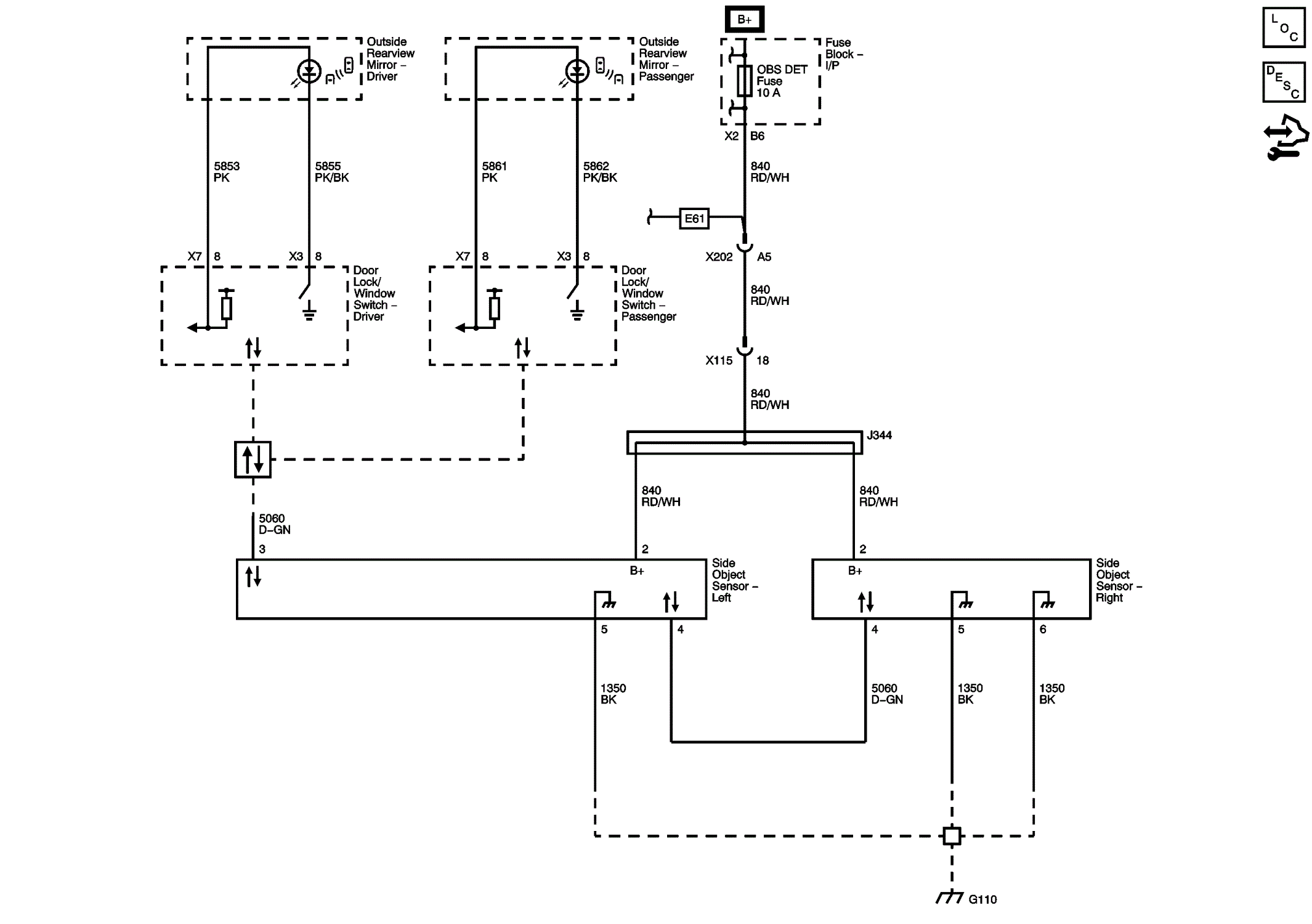

Home › Cadillac › 2014 › Escalade Base, AWD › Repair and Diagnosis › Accessories & Equipment › Collision/Avoidance › Object Detection System › Schematic Wiring Diagrams › Object Detection Wiring Schematics › Side Object Detection (UFT)
