Remote Control Door Lock Receiver

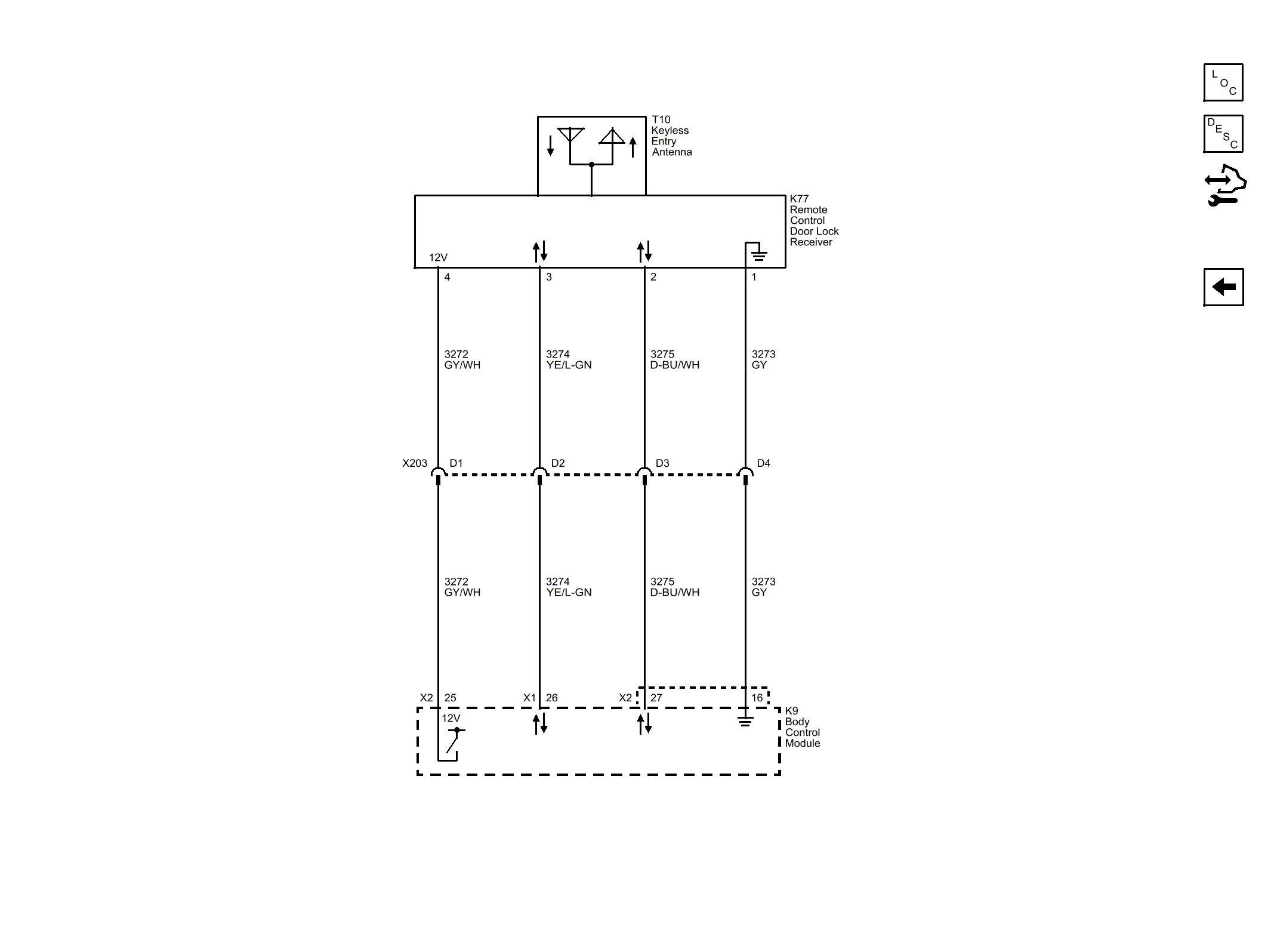

Fig 1: Remote Control Door Lock Receiver Wiring Schematic
GM3412893Courtesy of GENERAL MOTORS COMPANY
