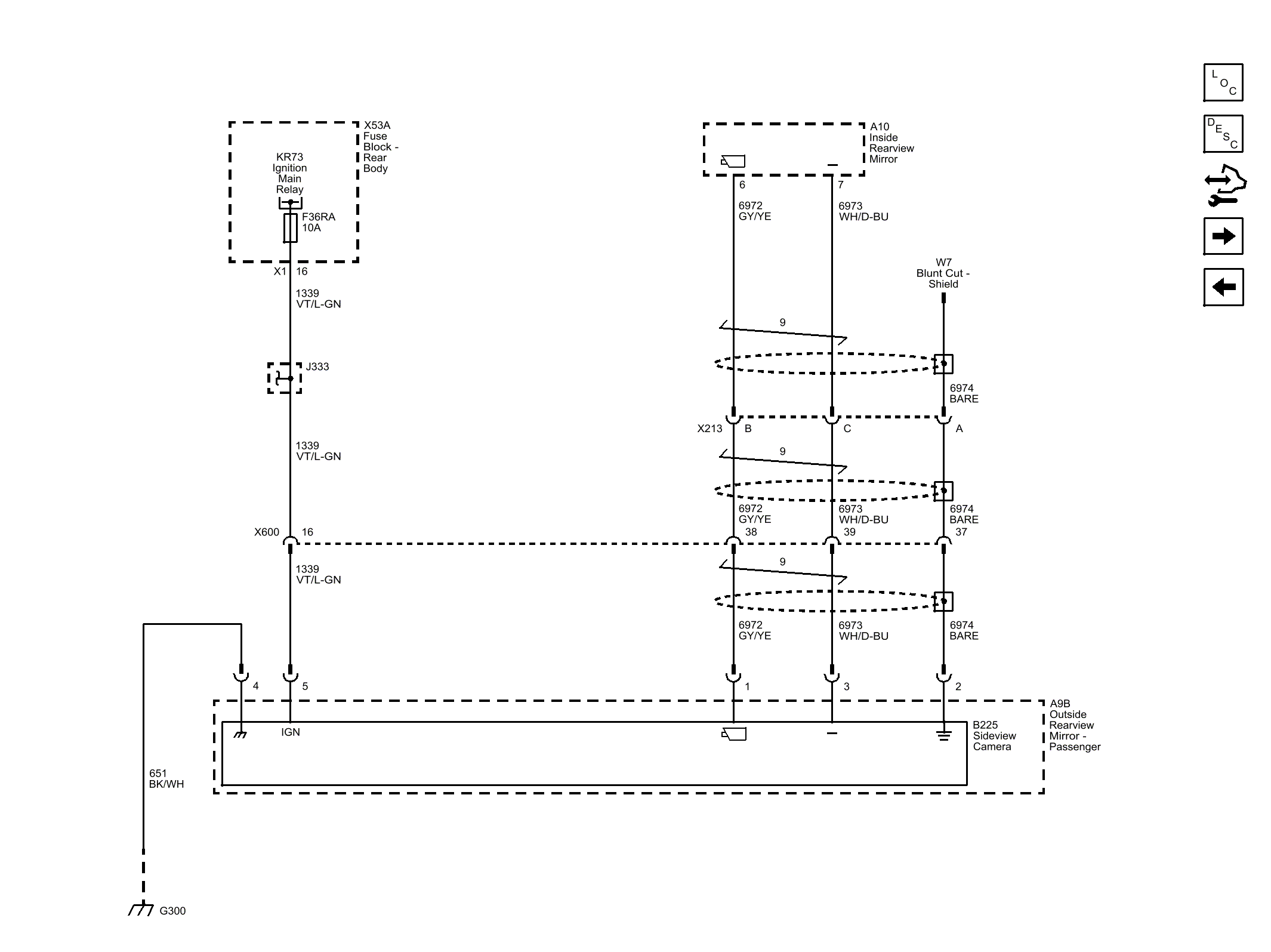

Home › Cadillac › 2014 › SRX Base › Repair and Diagnosis › Accessories & Equipment › Collision/Avoidance › Object Detection System › Schematic Wiring Diagrams › Object Detection Wiring Schematics › Sideview Camera (CV5)
