Cadillac
›
2014
›
SRX Base
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic Wiring Diagrams
›
Body Control System Wiring Schematics
›
Power, Ground, and Subsystem References (1 of 3)
Power, Ground, and Subsystem References (1 of 3)

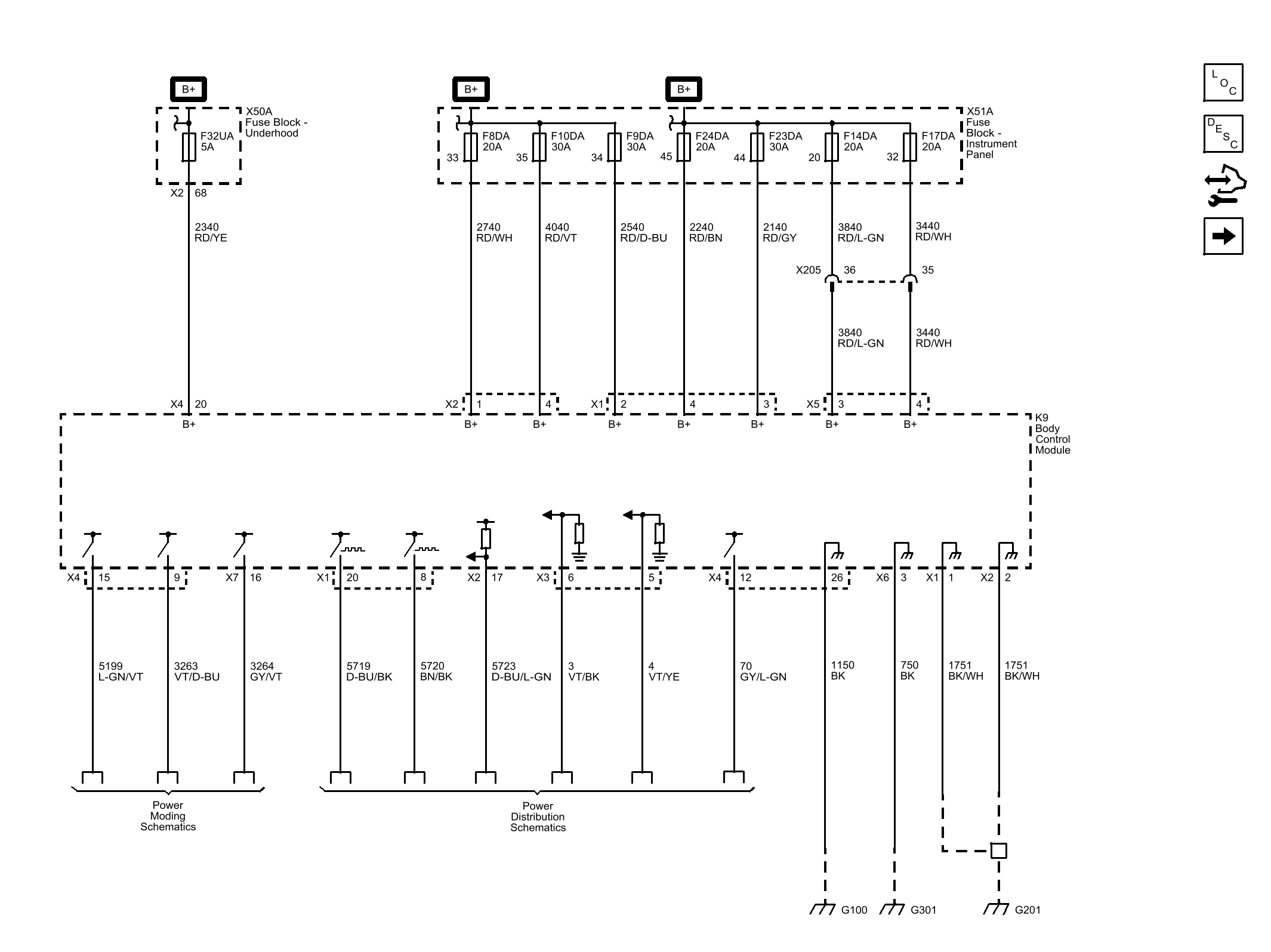

Fig 1: Power, Ground, and Subsystem References Wiring Schematic (1 of 3)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
