Communication and Enable Wake-up Circuits

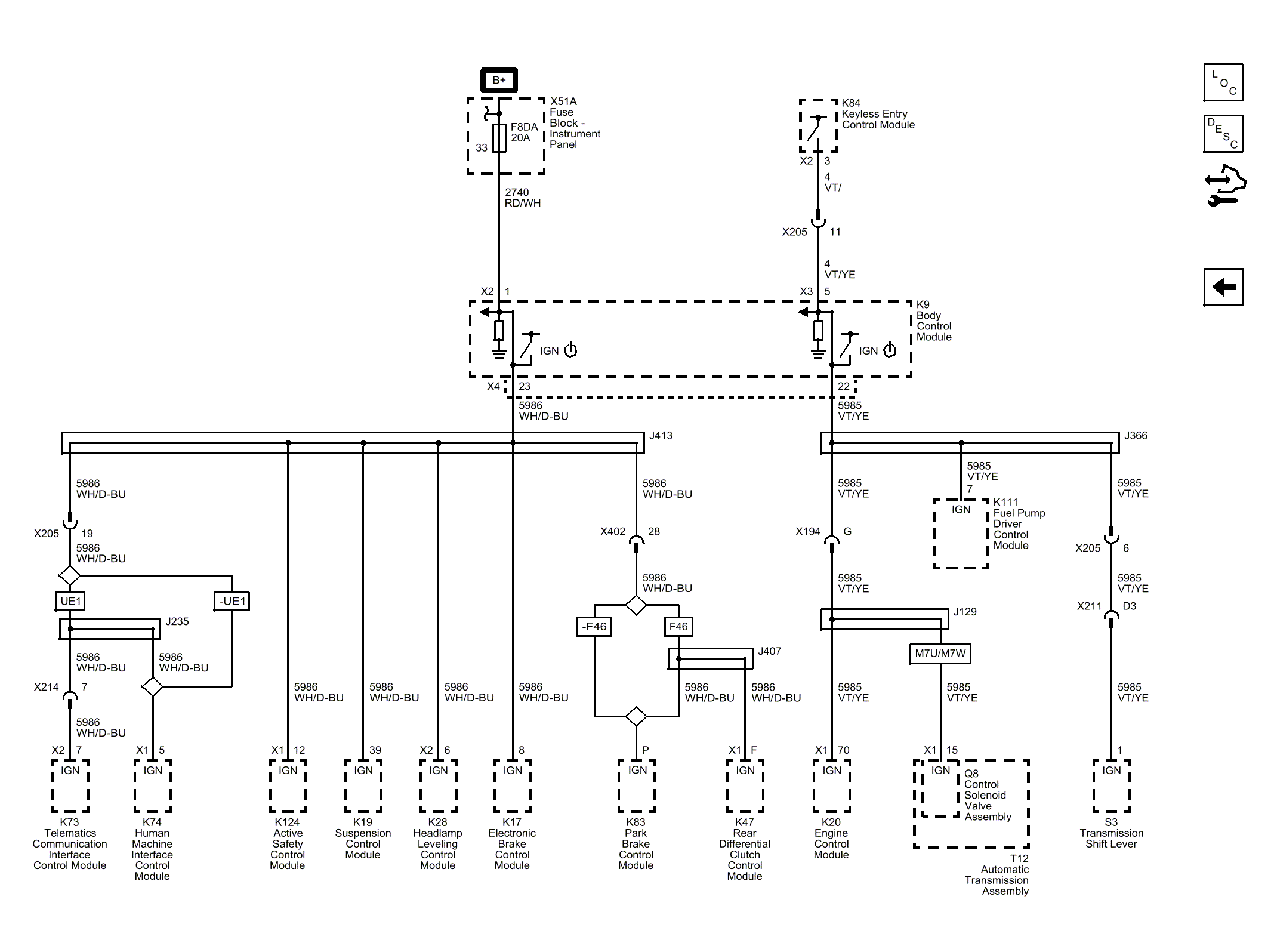

Fig 1: Communication and Enable Wake-up Circuits Wiring Schematic
GM3412784Courtesy of GENERAL MOTORS COMPANY
