Linear Interconnect Network (LIN)

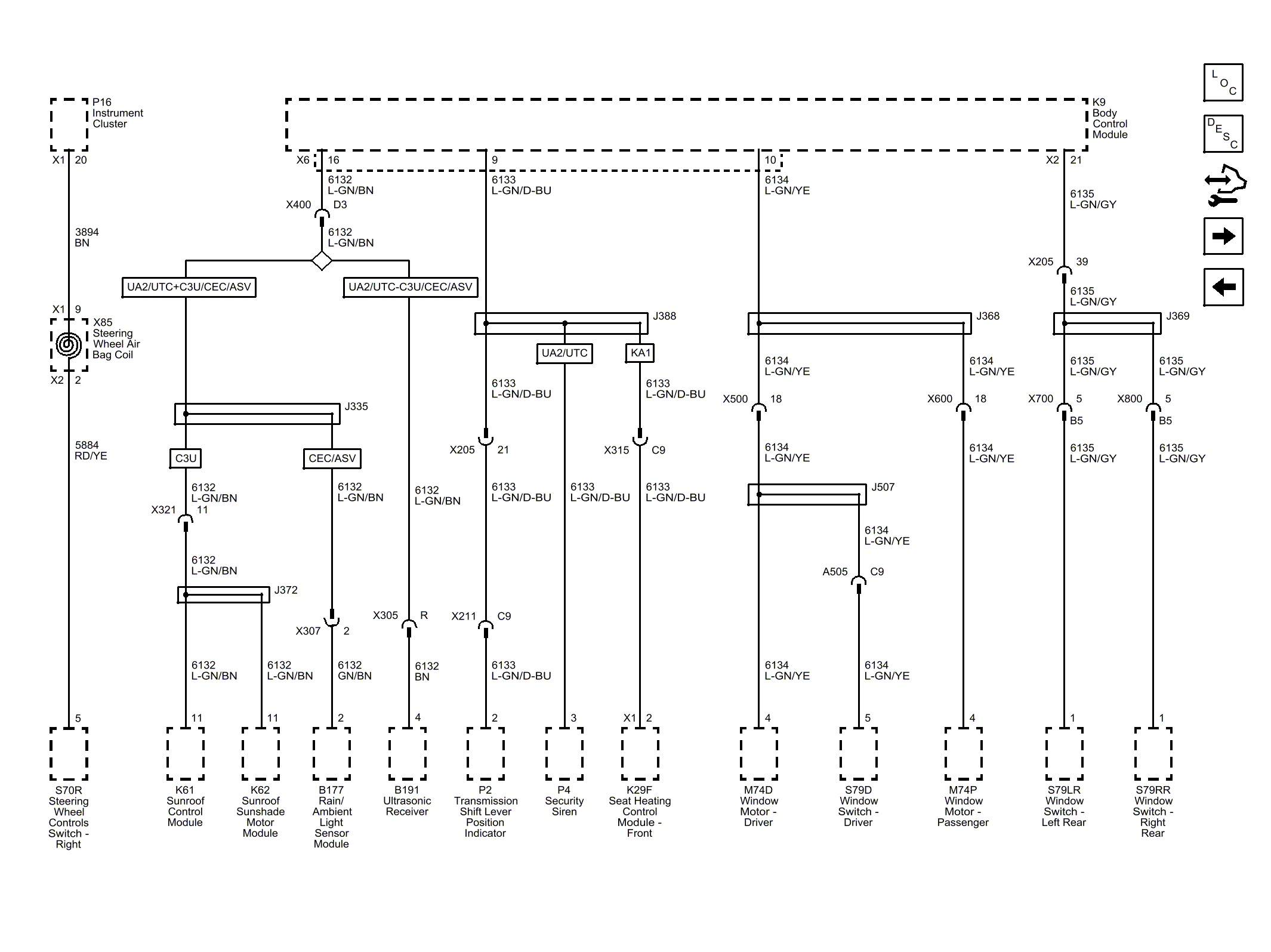

Fig 1: Linear Interconnect Network Wiring Schematic (LIN)
GM3412779Courtesy of GENERAL MOTORS COMPANY
