Data Communication Wiring Schematics
›
Object Bus
Object Bus

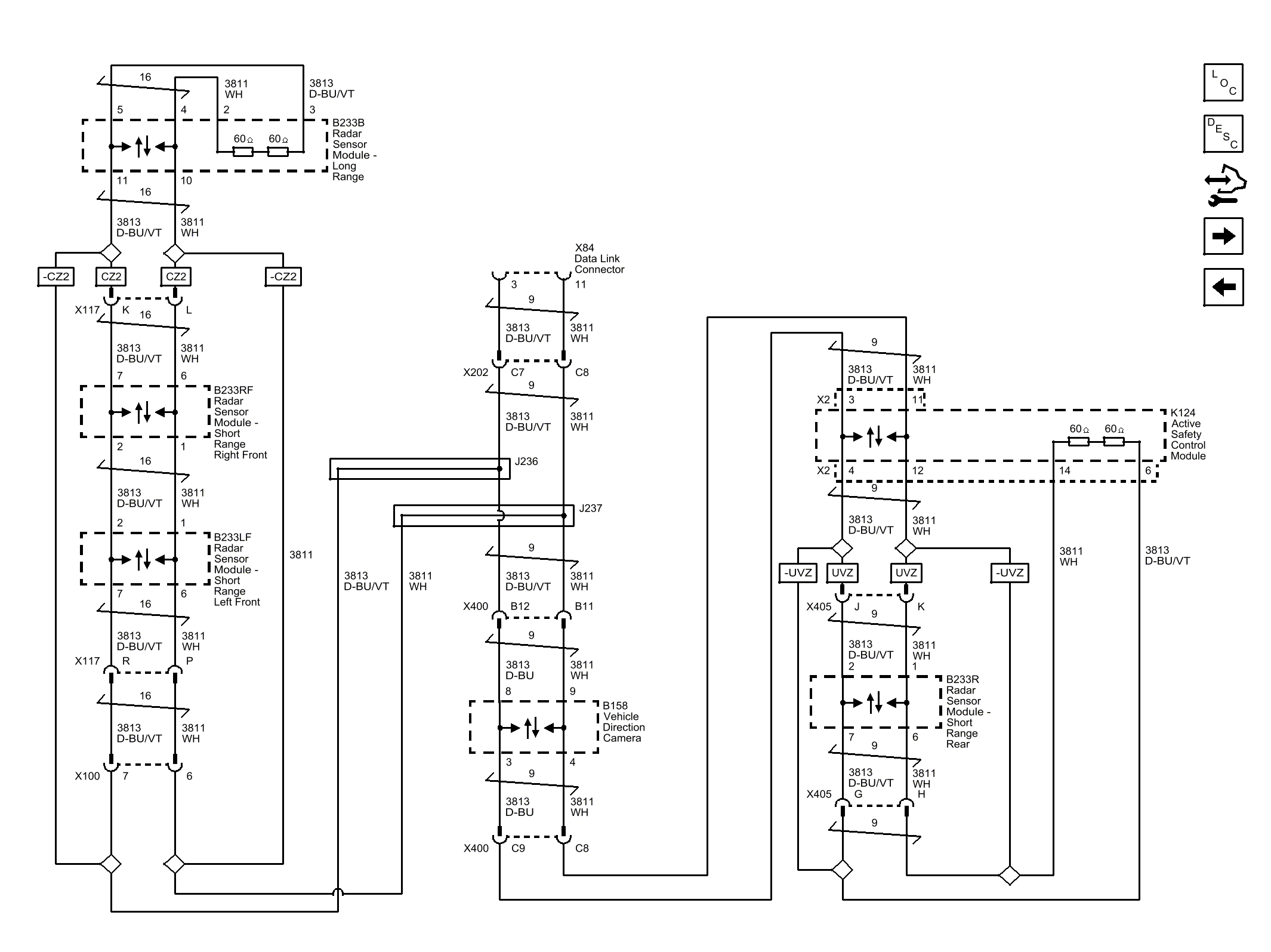

Fig 1: Object Bus Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
