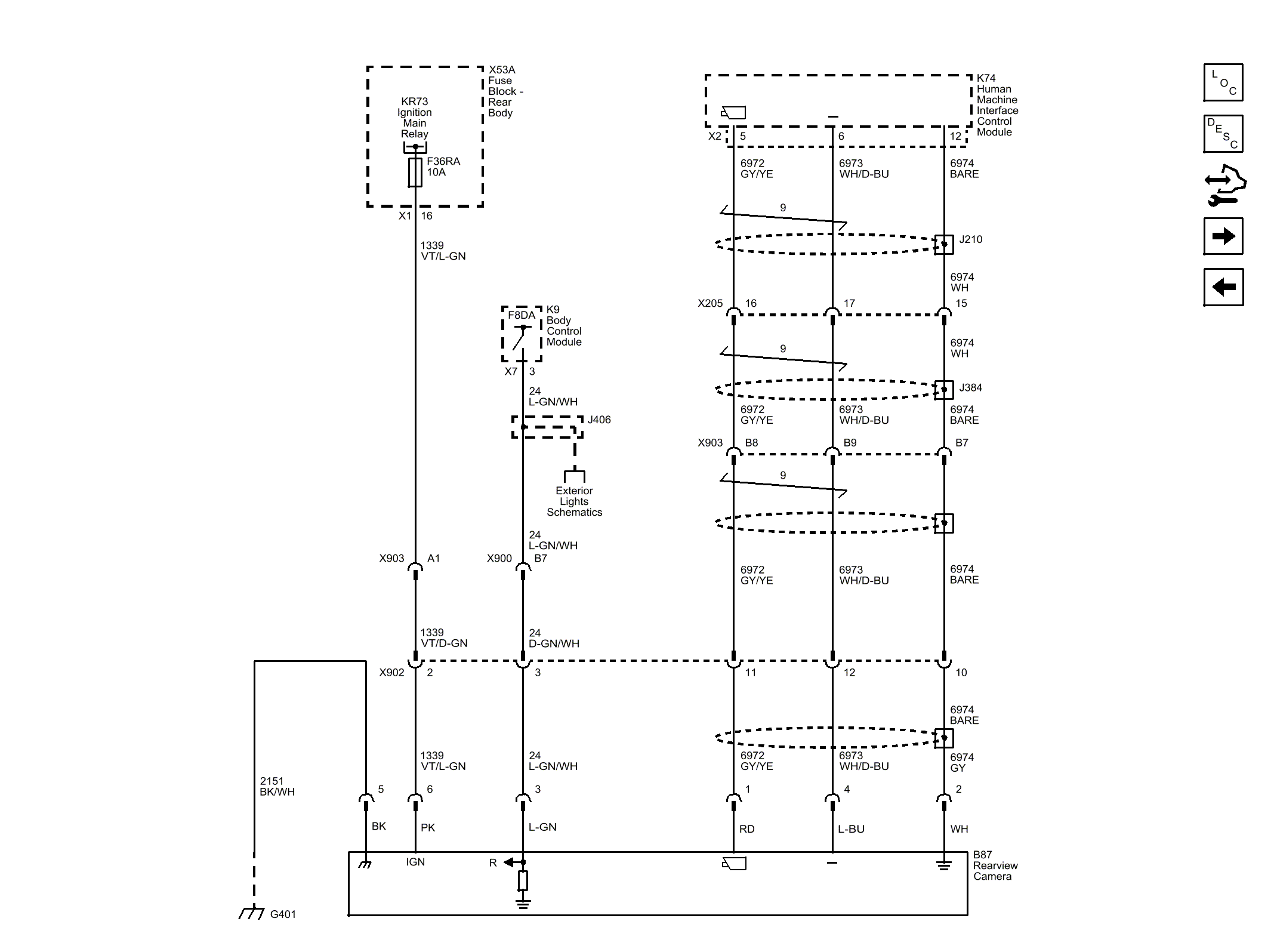

Home › Cadillac › 2014 › SRX Performance, AWD › Repair and Diagnosis › Accessories & Equipment › Drivers Assistance Systems - ADAS › Object Detection System › Schematic Wiring Diagrams › Object Detection Wiring Schematics › Rear Vision Camera (UVC)
