Linear Interconnect Network (LIN) 2

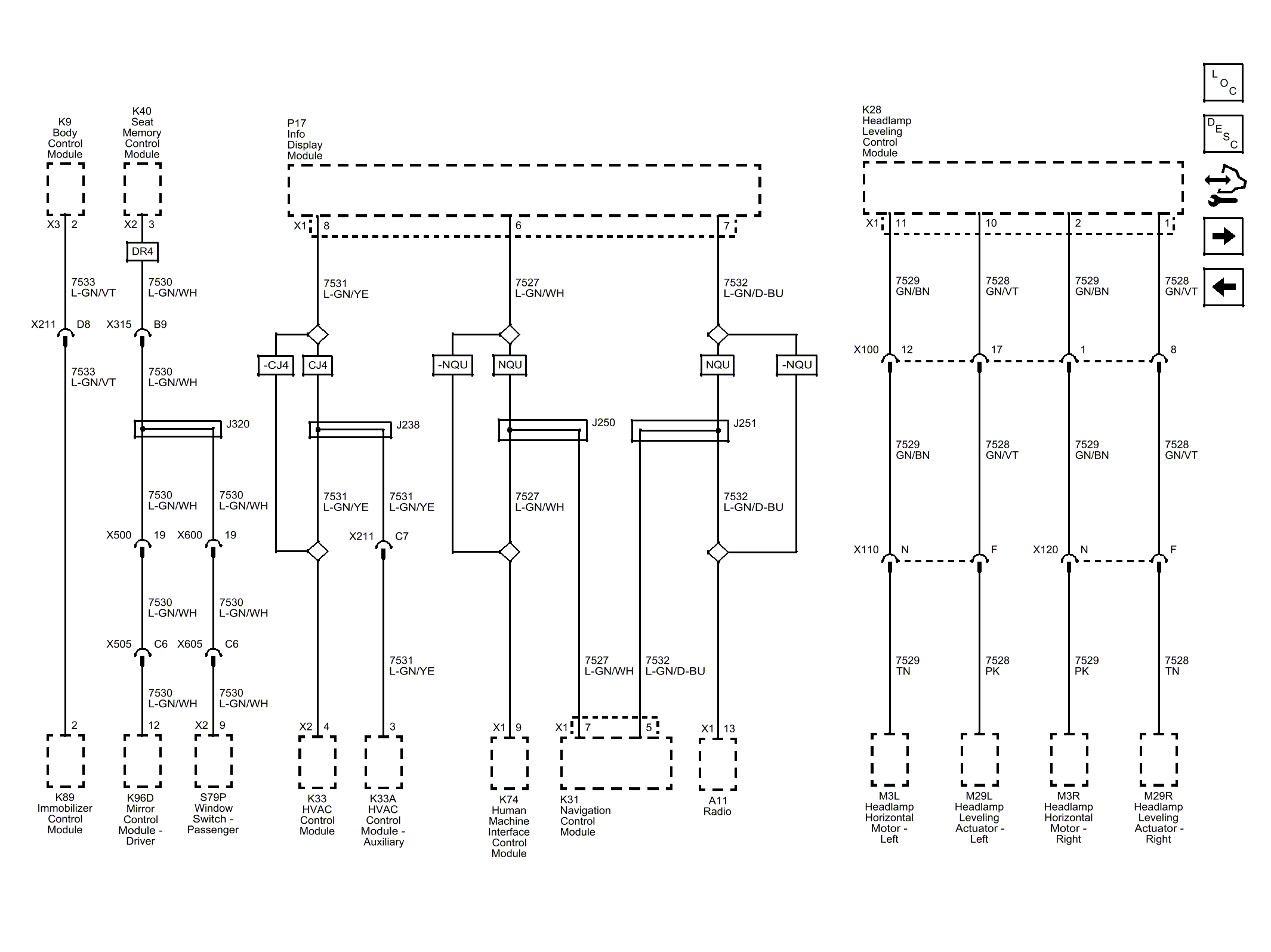

Fig 1: Linear Interconnect Network 2 Wiring Schematic (LIN)

GM3412781

Courtesy of GENERAL MOTORS COMPANY
