USB Signals to Human Machine Interface Control Module

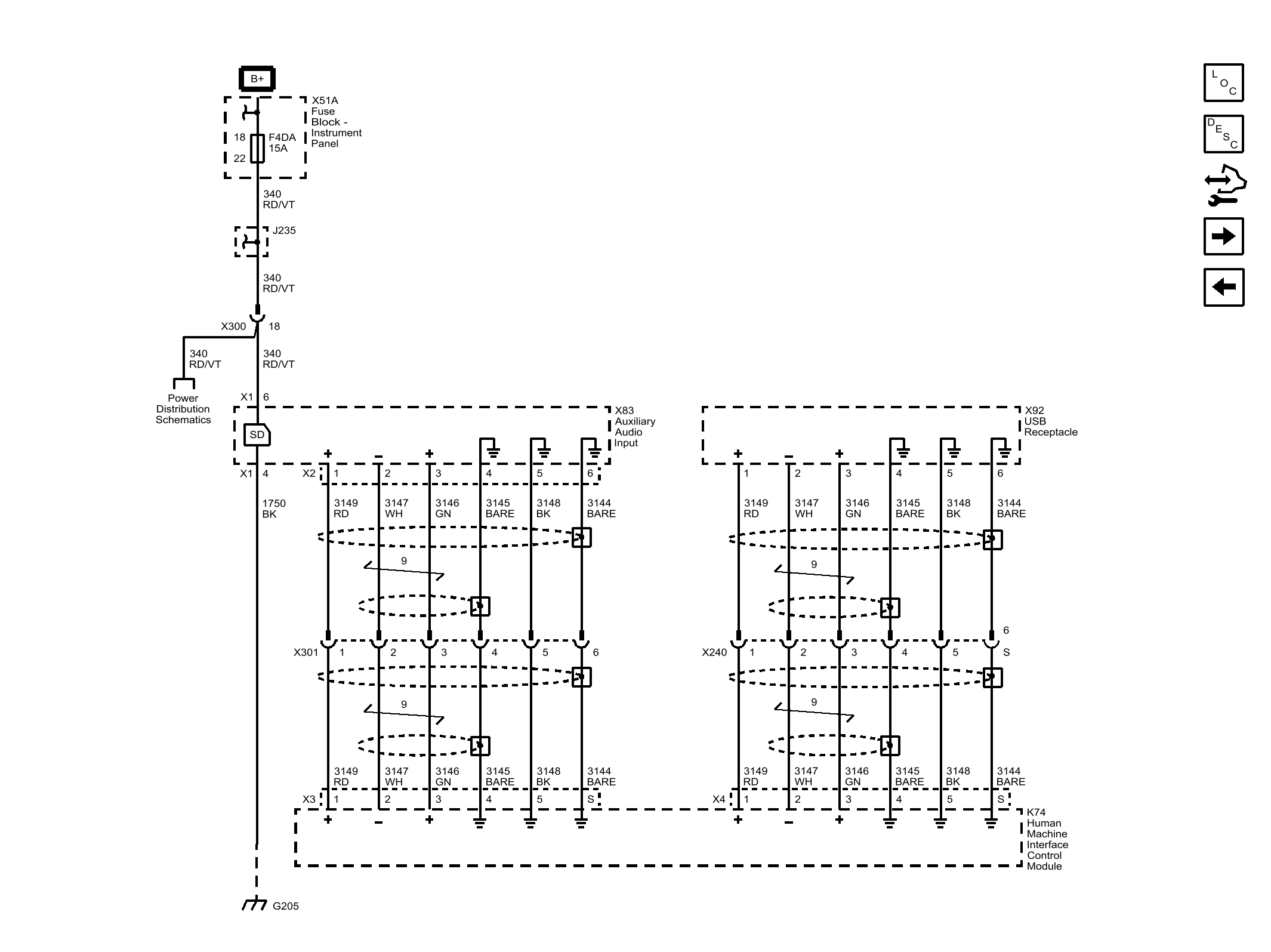

Fig 1: USB Signals to Human Machine Interface Control Module
GM3252785Courtesy of GENERAL MOTORS COMPANY
