Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel
Courtesy of GENERAL MOTORS COMPANY Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel
| Callout |
Component Name |
|
Preliminary Procedure
- Remove the front floor console extension - right side. Refer to Front Floor Console Extension Panel Replacement - Right Side
.
- Reposition the front floor carpet as needed.
|

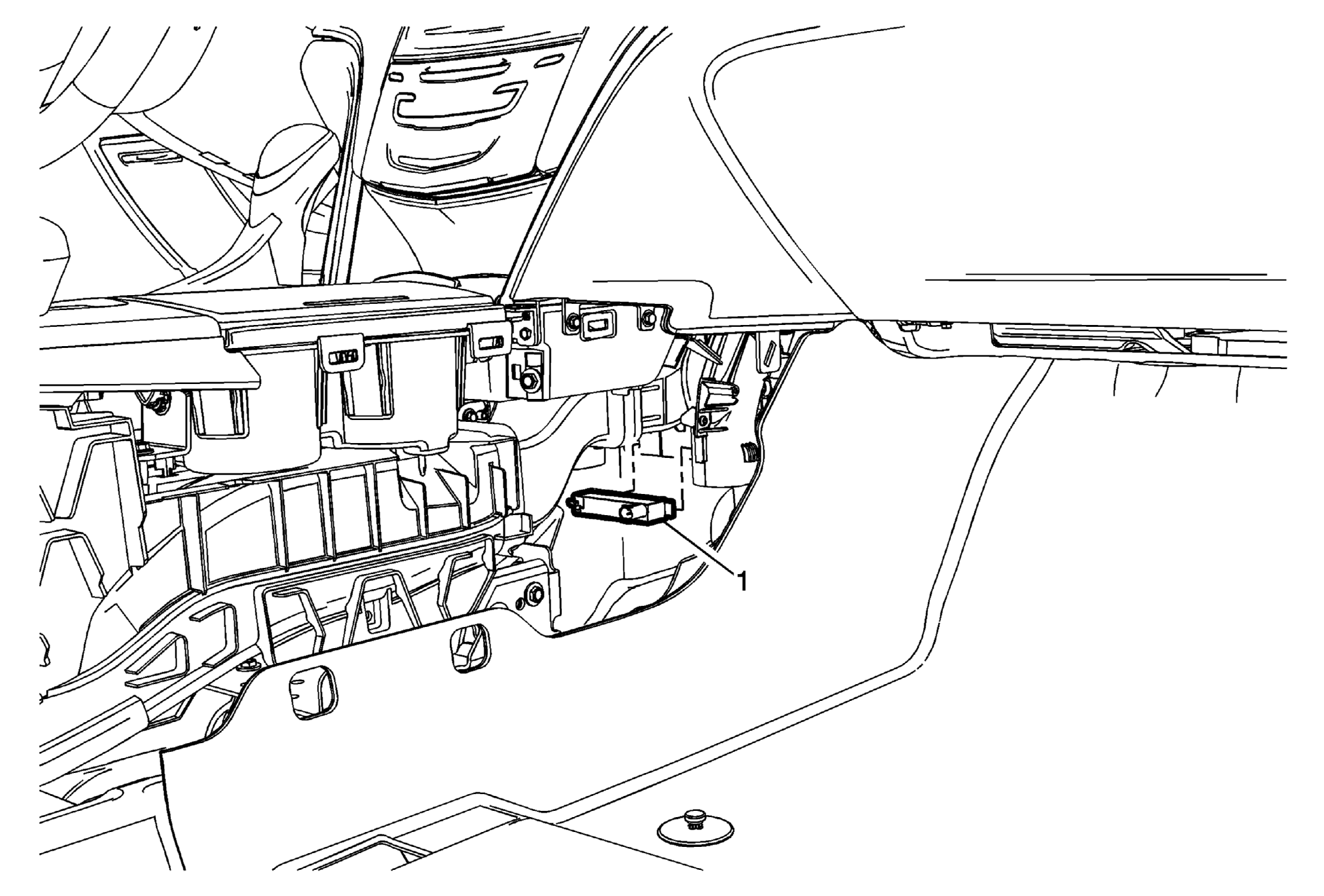

| 1 |
Ignition Lock Key Transmitter Antenna Assembly Procedure
- Reposition air duct as required.
- Disconnect the electrical connector.
- Unsnap antenna from the heater module.
|
