Air Cleaner Element Replacement (LF3)

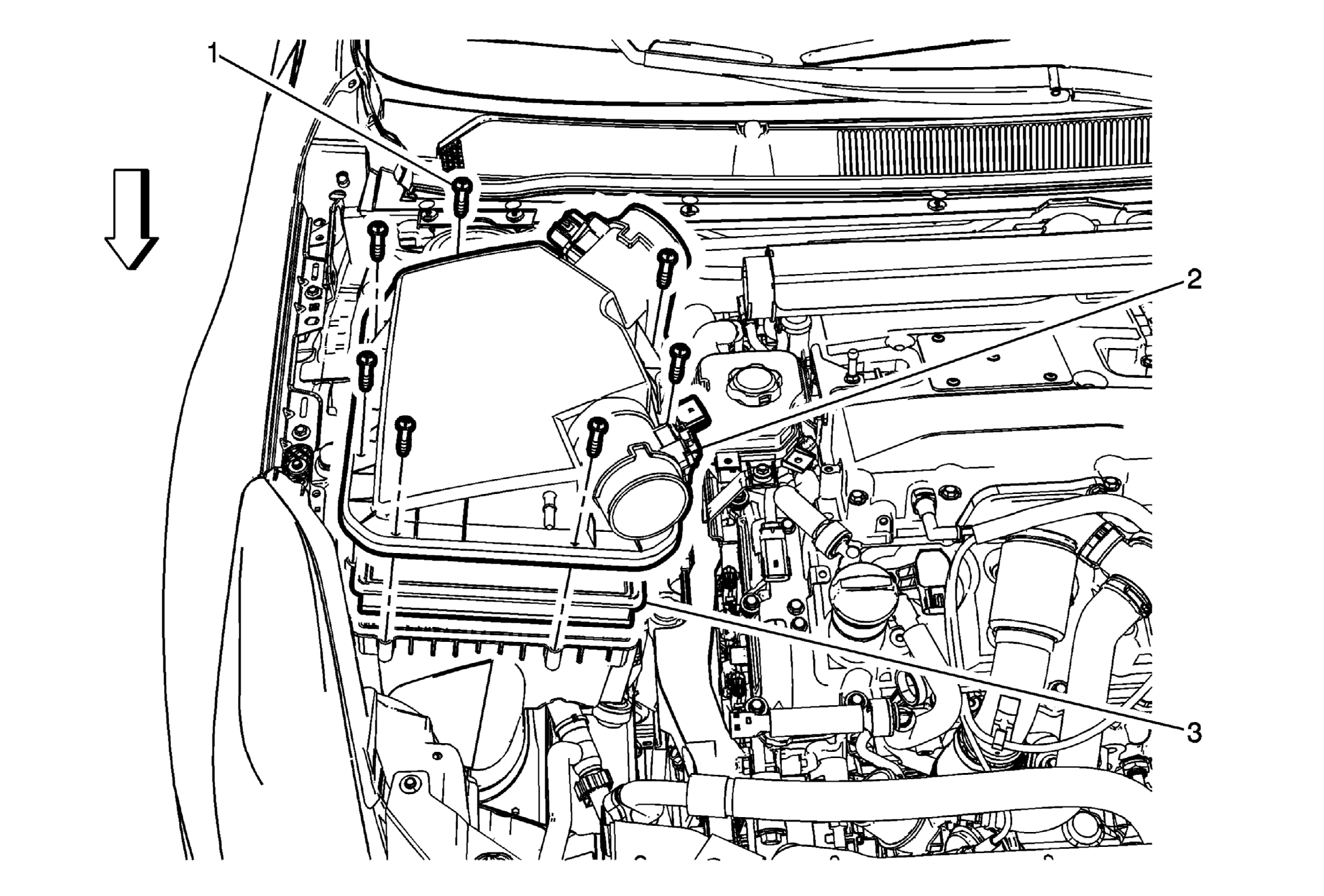

Fig 1: Air Cleaner Element (LF3)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the air cleaner outlet rear duct. Refer to Air Cleaner Outlet Rear Duct Replacement (LF3) . Disconnect the air cleaner outlet front duct. Refer to Air Cleaner Outlet Front Duct Replacement (LF3) . Disconnect the turbocharger wastegate actuator vacuum tank solenoid valve tube. Refer to Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube Replacement (LF3) .
1	Air Cleaner Assembly Fasteners (Qty: 7) CAUTION: Refer to Fastener Caution .
2	Air Cleaner Upper Cover Procedure Disconnect the electrical connector.
3	Air Cleaner Element
