Fuel Feed Intermediate Pipe Replacement (LF3)

Preliminary Procedures

1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
2. Remove the supercharger water manifold. Refer to Supercharger Water Manifold Replacement .
3. Disconnect the engine wiring harness electrical connectors and hoses then reposition as needed.
4. Remove the fuel pipe shield. Refer to Fuel Pipe Shield Replacement (LF3) .

Tighten

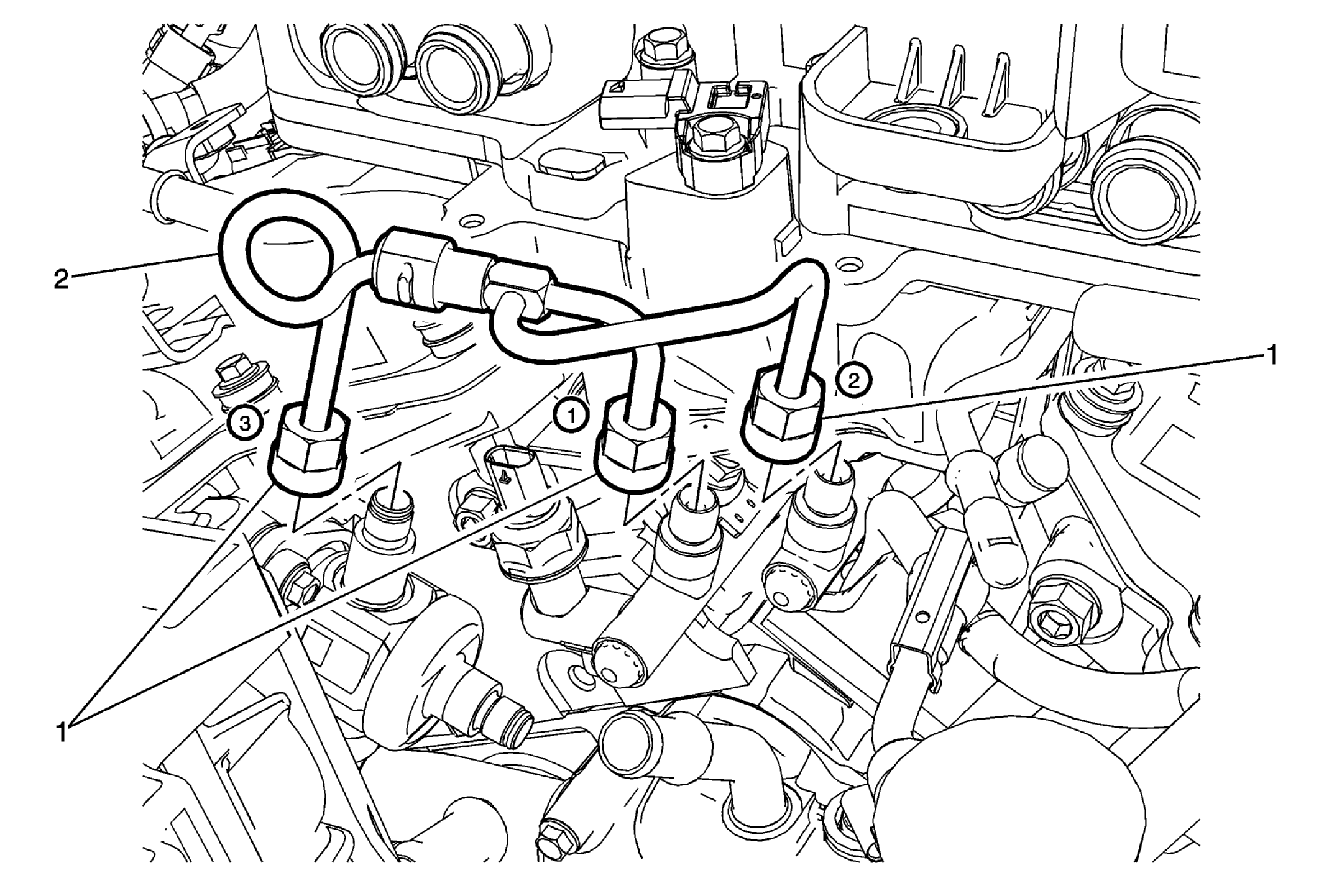

1. Start and hand tighten the NEW fuel feed intermediate pipe fittings (1)
2. Tighten the fittings evenly in sequence as numbered to 30 (22 lb ft).

Procedure

1. Discard the pipe when removed and install a NEW pipe.
2. Lubricate the pipes with silicon free engine oil. Refer to Adhesives, Fluids, Lubricants, and Sealers .
3. Pressure up the fuel system and check for leaks.
