Intake Air Pressure and Temperature Sensor Replacement (LF3)

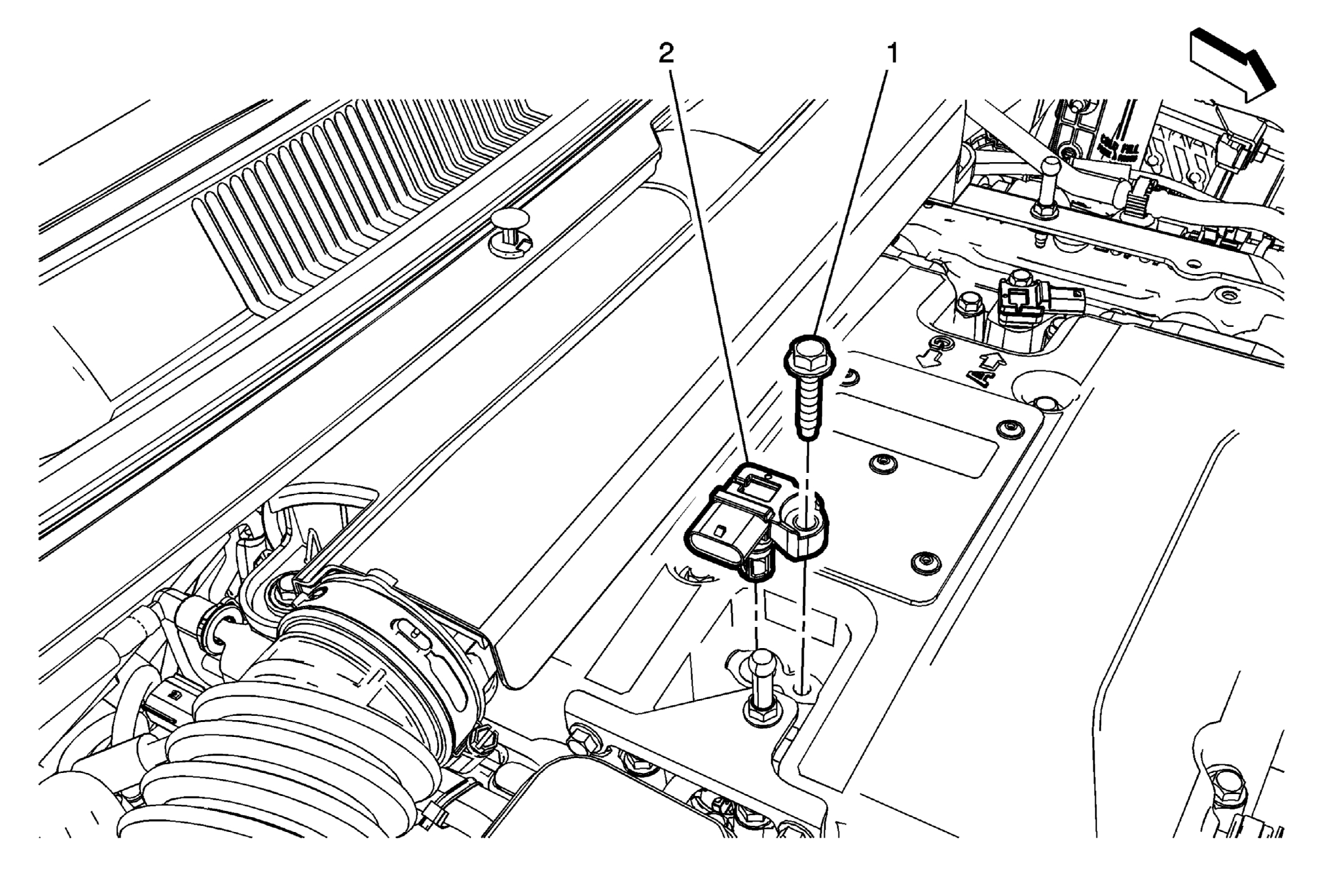

Fig 1: Intake Air Pressure and Temperature Sensor (LF3)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Intake Air Pressure and Temperature Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 10 (89 lb in)
2	Intake Air Pressure and Temperature Sensor

Callout

Component Name

Preliminary Procedures

Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LF3) .
Disconnect the electrical connector from the manifold absolute pressure sensor.

Intake Air Pressure and Temperature Sensor Fastener

CAUTION:

Tighten
10 (89 lb in)

Intake Air Pressure and Temperature Sensor
