Knock Sensor Replacement - Bank 1 (LF3 Front)

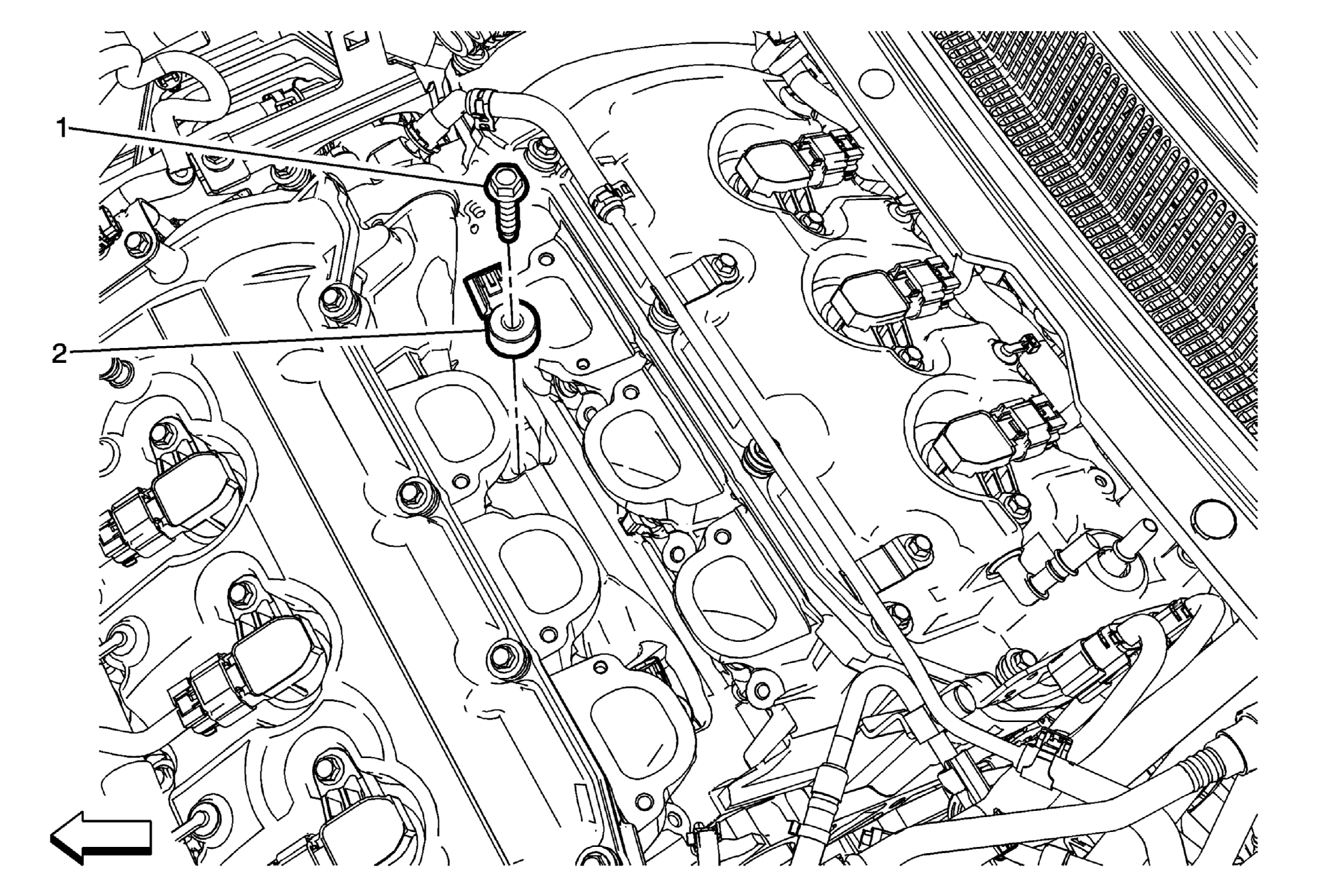

Fig 1: Knock Sensor - Bank 1 (LF3 Front)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the fuel injection fuel rail assemblies bank 1 and bank 2. Refer to Fuel Injection Fuel Rail Assembly Replacement - Bank 1 (LF3) , and Fuel Injection Fuel Rail Assembly Replacement - Bank 2 (LF3) .
1	Knock Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 25 (18 lb ft)
2	Knock Sensor Procedure Disconnect the knock sensor electrical connector. Ensure that the knock sensor connector opening is directed toward the front of the engine.
