Power, Ground and Data Communication

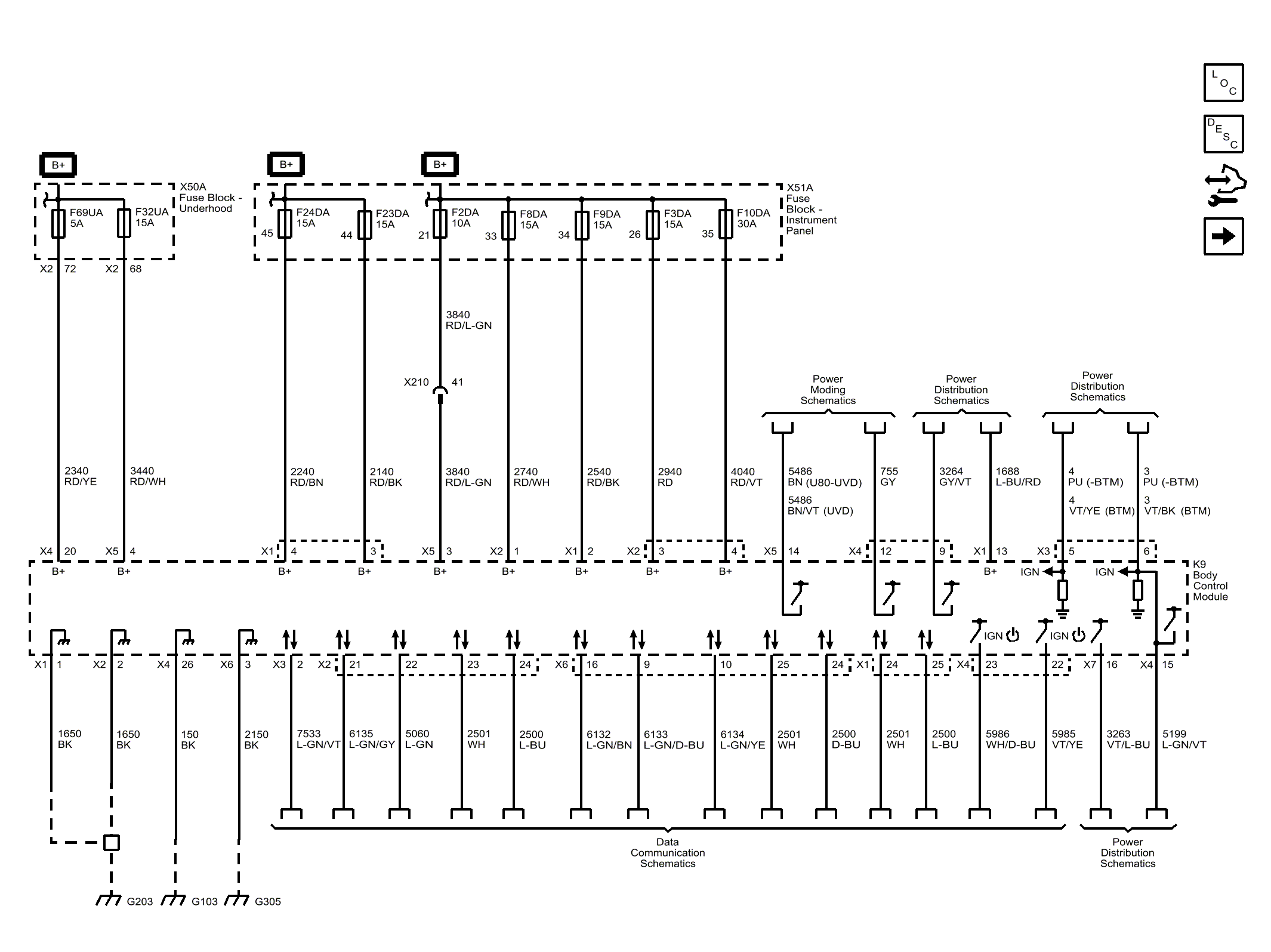

Fig 1: Power, Ground and Data Communication
GM3252087Courtesy of GENERAL MOTORS COMPANY
