Data Communication System
›
Schematic Wiring Diagrams
›
Data Communication Wiring Schematics
›
Data Link Connector Power, Ground and Low Speed GMLAN
Data Link Connector Power, Ground and Low Speed GMLAN

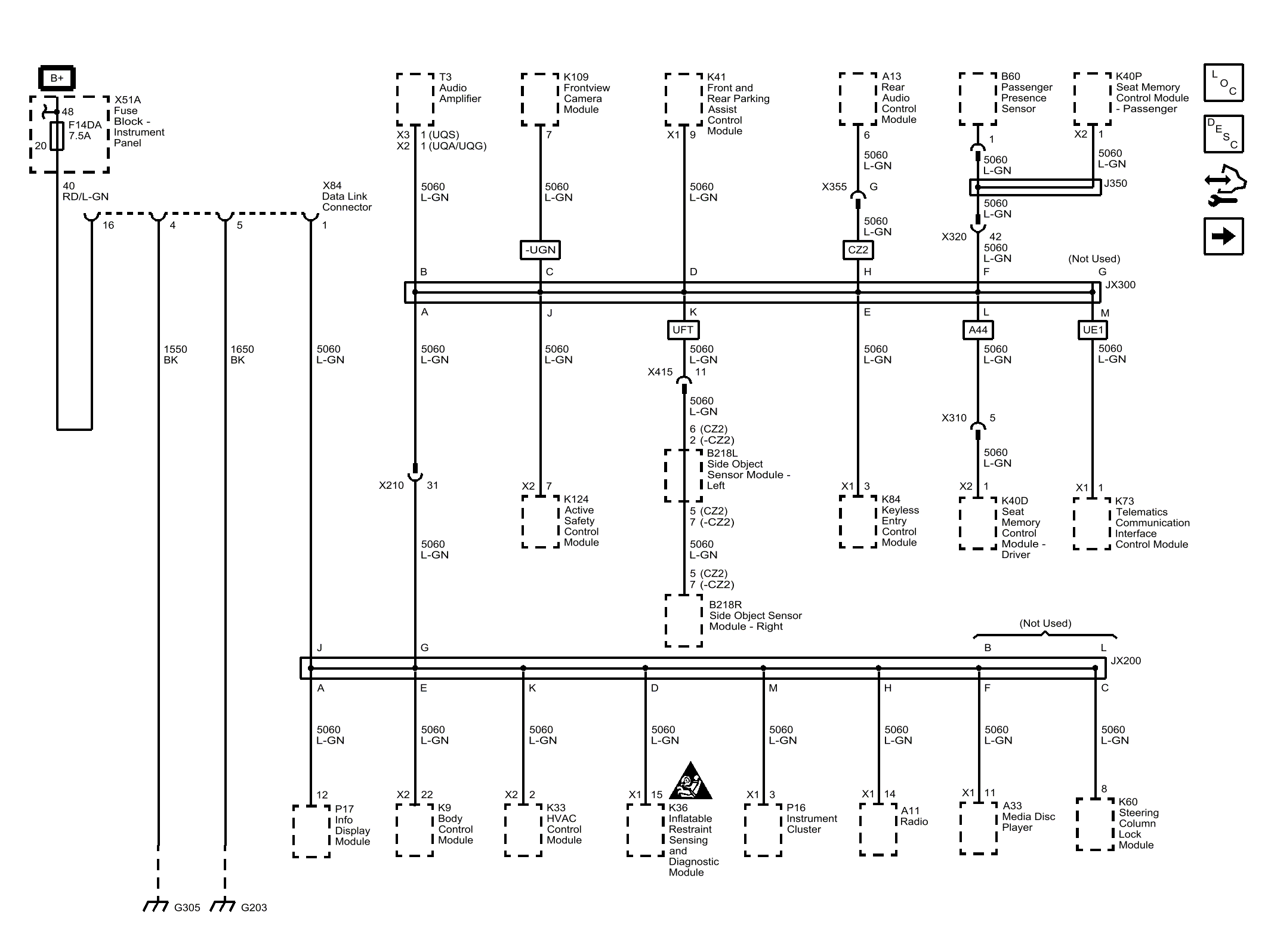

Fig 1: Data Link Connector Power, Ground and Low Speed GMLAN
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
