Backup Lamp Bulb Replacement

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

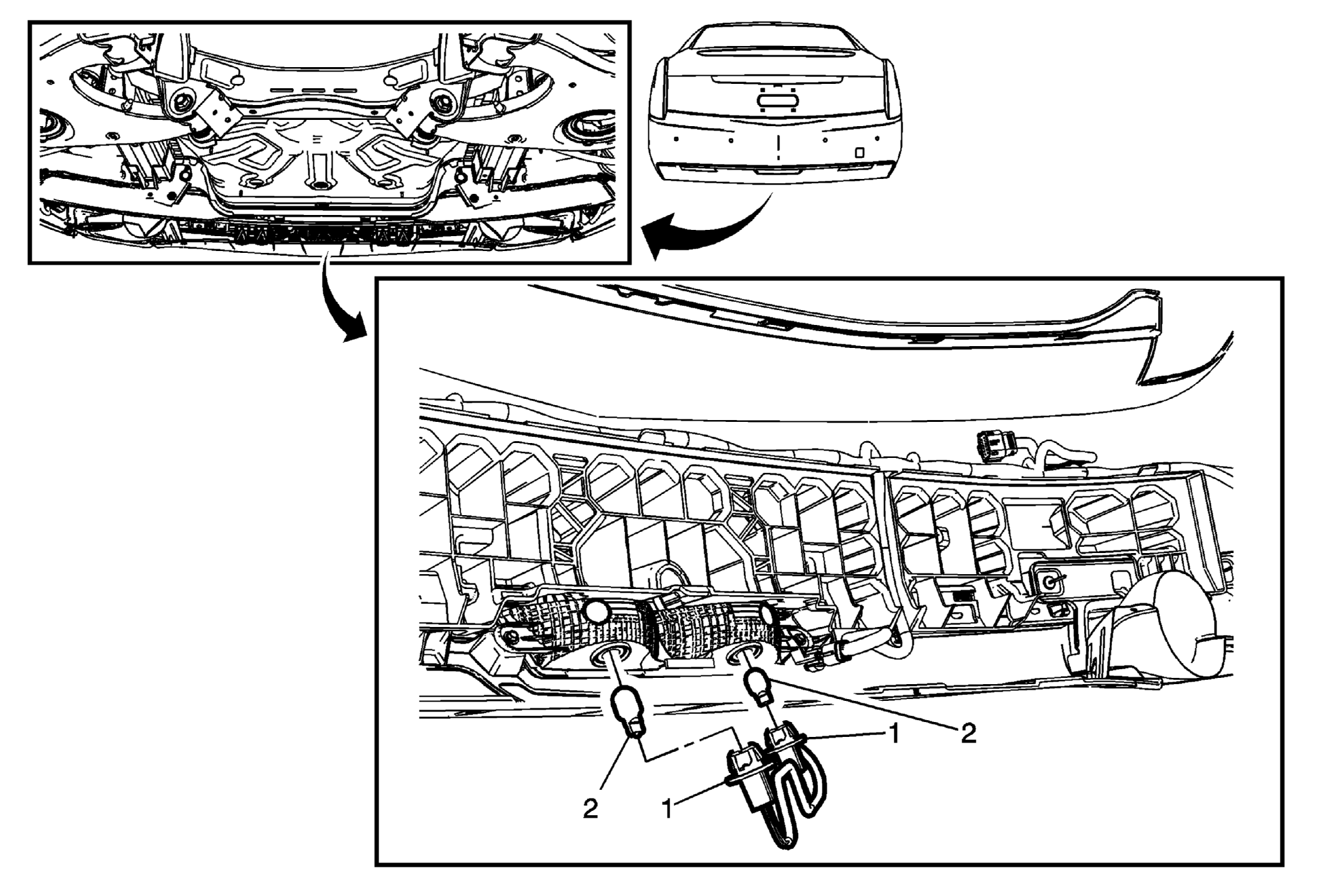

Fig 1: Backup Lamp Bulb & Socket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Backup Lamp Bulb Socket Procedure Rotate the backup lamp socket counterclockwise and remove the backup lamp socket from the backup lamp housing.
2	Backup Lamp Bulb Procedure Hold the backup lamp socket and pull the backup lamp bulb straight out of the backup lamp socket to remove.
