Front Floor Console Compartment Lamp Replacement
WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.
Front Floor Console Compartment Lamp Replacement

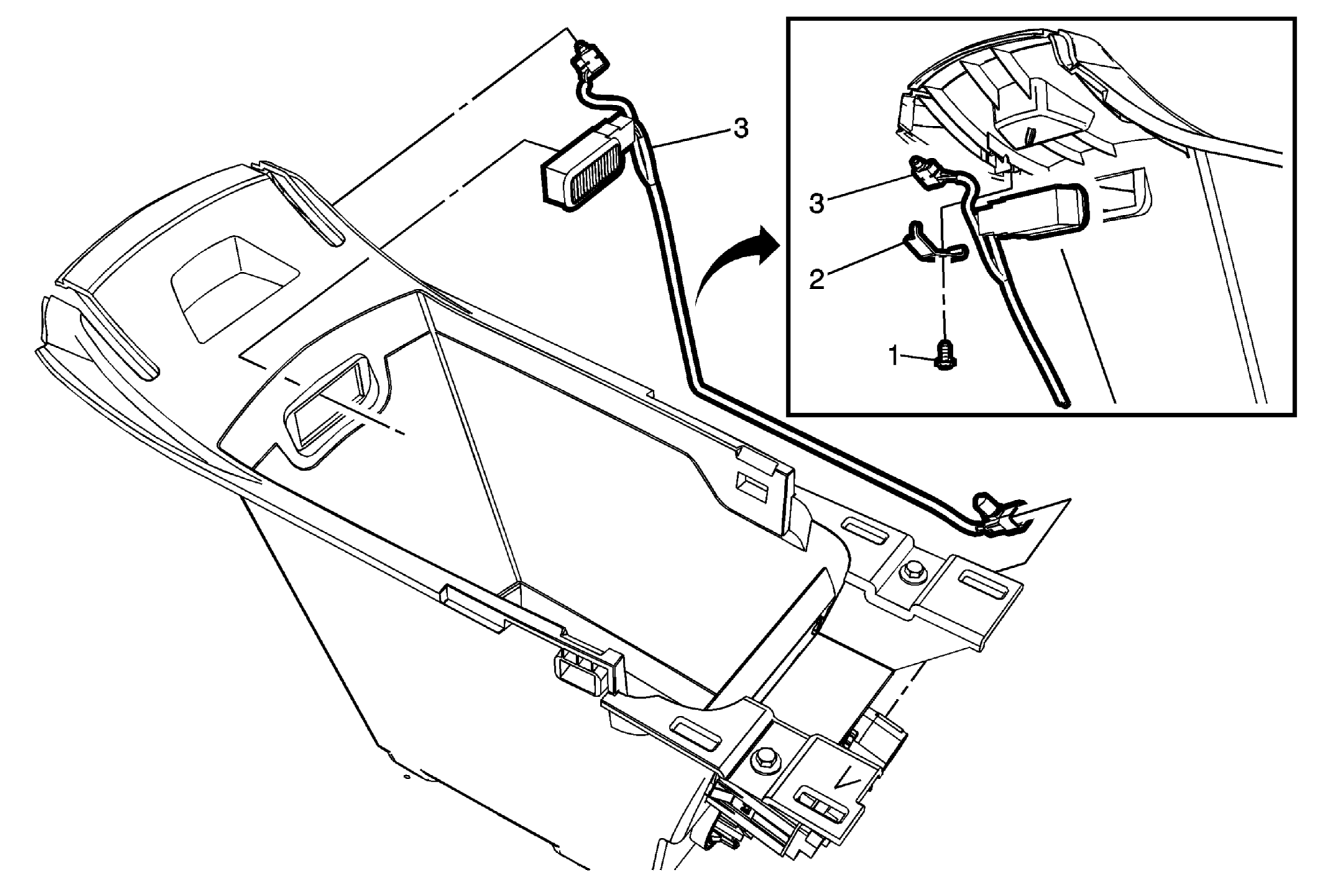

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console compartment - rear. Refer to Front Floor Console Compartment Replacement . |
|
| 1 | Front Floor Console Compartment Lamp Fastener
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Floor Console Compartment Lamp Bracket |
| 3 | Front Floor Console Compartment Lamp Procedure Disconnect the electrical connectors. |
