Front Side Marker Lamp Replacement

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

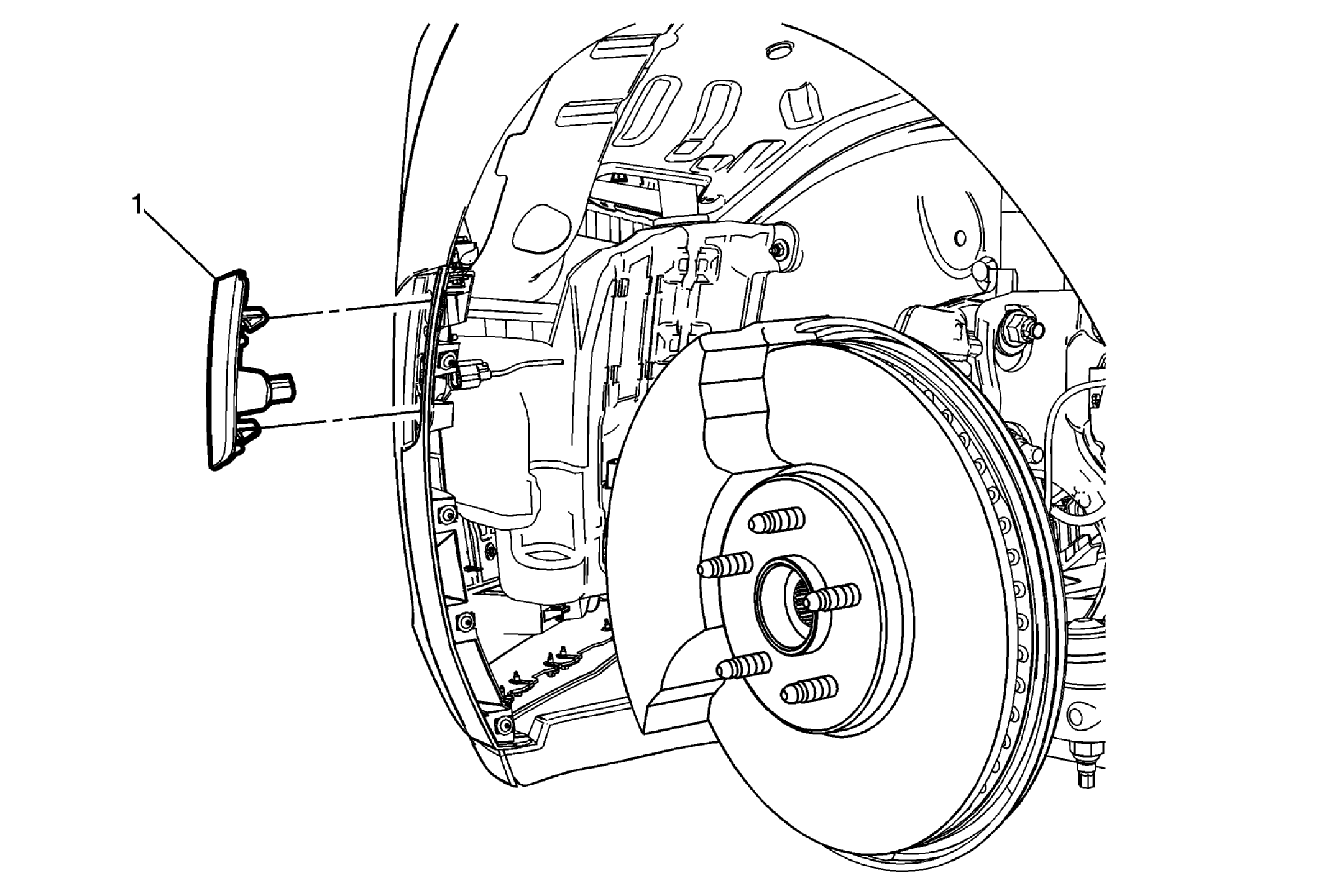

Fig 1: Front Side Marker Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove front wheelhouse front liner replacement. Refer to Front Wheelhouse Front Liner Replacement .
1	Front Side Marker Lamp Procedure Using a small flat-bladed tool, depress the locking tab at the top and bottom edge of the front side marker lamp assembly. Pull the lamp outward away from the fascia. Disconnect the electrical connector to remove the lamp assembly. Rotate the bulb socket counter clockwise to remove from the lamp. Replace the bulb as needed.

Callout

Component Name

Preliminary Procedure
Remove front wheelhouse front liner replacement. Refer to Front Wheelhouse Front Liner Replacement .

Front Side Marker Lamp

Procedure

Using a small flat-bladed tool, depress the locking tab at the top and bottom edge of the front side marker lamp assembly.
Pull the lamp outward away from the fascia.
Disconnect the electrical connector to remove the lamp assembly.
Rotate the bulb socket counter clockwise to remove from the lamp.
Replace the bulb as needed.
