Instrument Panel Compartment Lamp Replacement

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

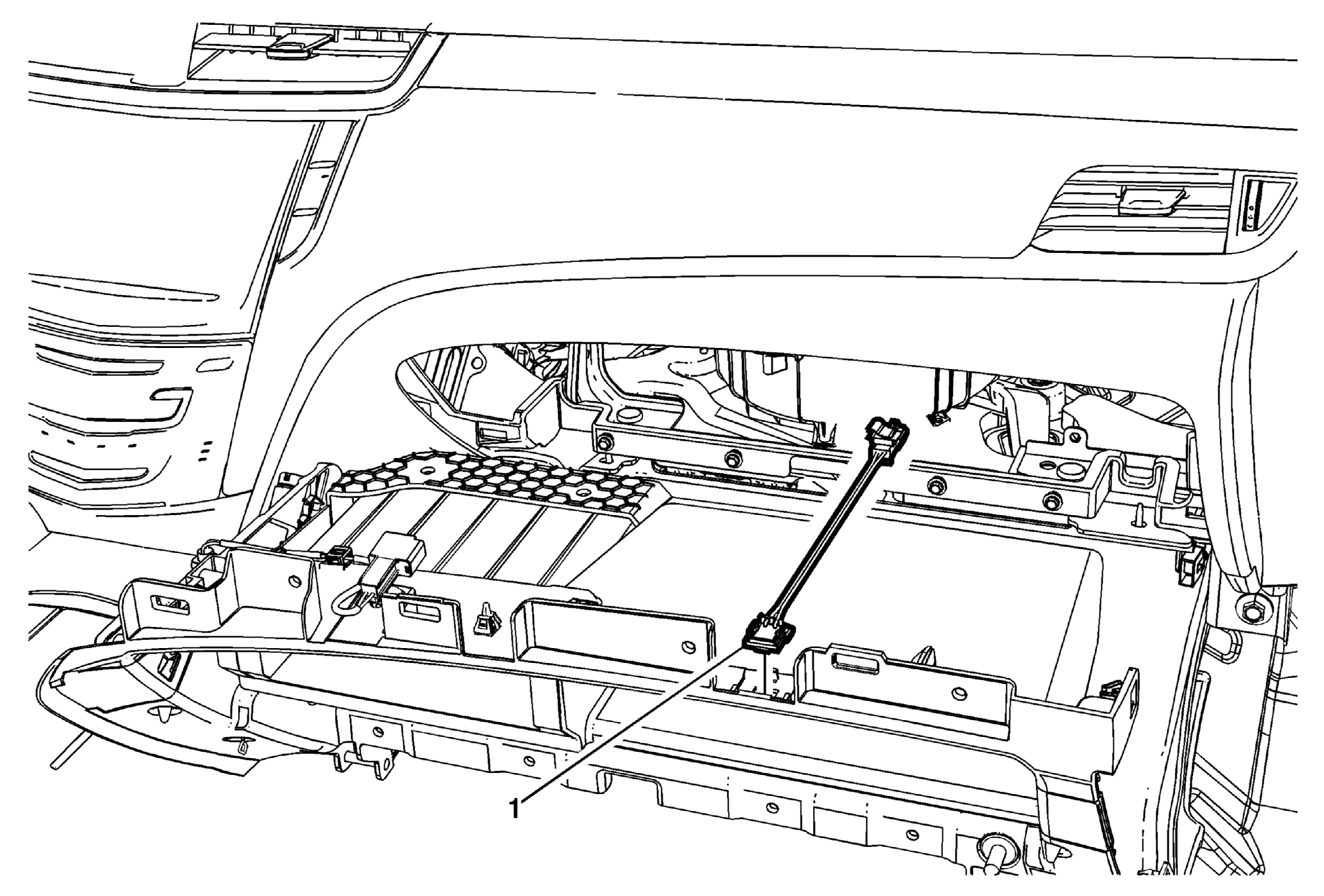

Fig 1: Instrument Panel Compartment Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Compartment Lamp Procedure Open the instrument panel compartment door. Use a plastic flat bladed trim tool in order to release the lamp assembly from the instrument panel compartment housing. Disconnect the electrical connection.
