Front End Inflatable Restraint Discriminating Sensor Replacement

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

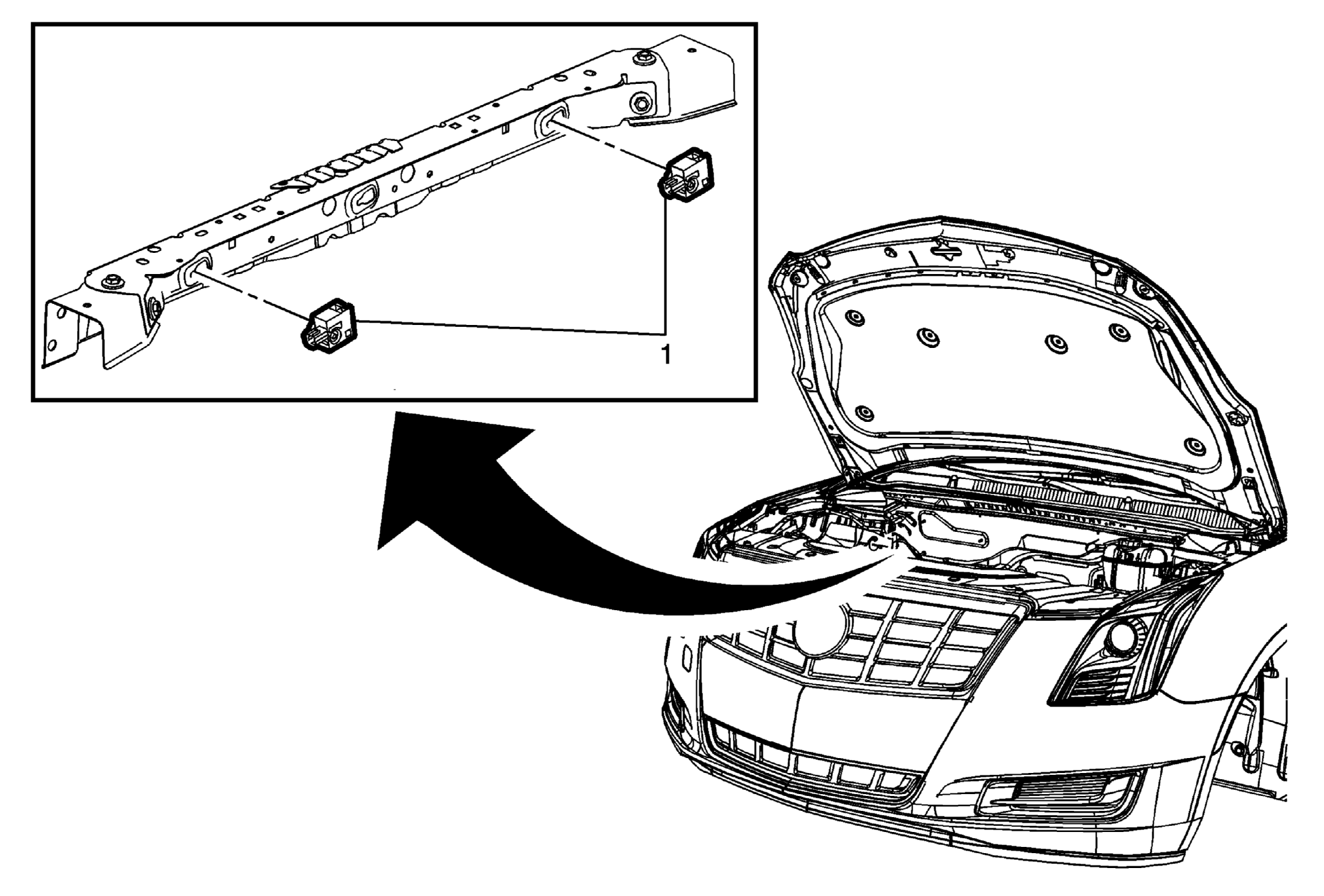

Fig 1: Front End Inflatable Restraint Discriminating Sensors

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement .
1	Inflatable Restraint Front End Discriminating Sensor Assembly (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Disconnect electrical connector. Loosen the bolts and slide the sensor out of the keyhole slots. The bolts are integral to the sensor assembly and DO NOT remove separately. Tighten 7.5 (66 lb in)

Callout

Component Name

WARNING:

Refer to SIR Warning .

Preliminary Procedures

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement .

Inflatable Restraint Front End Discriminating Sensor Assembly (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Procedure

Disconnect electrical connector.
Loosen the bolts and slide the sensor out of the keyhole slots.
The bolts are integral to the sensor assembly and DO NOT remove separately.

Tighten
7.5 (66 lb in)
