Radio Rear Speaker Replacement

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

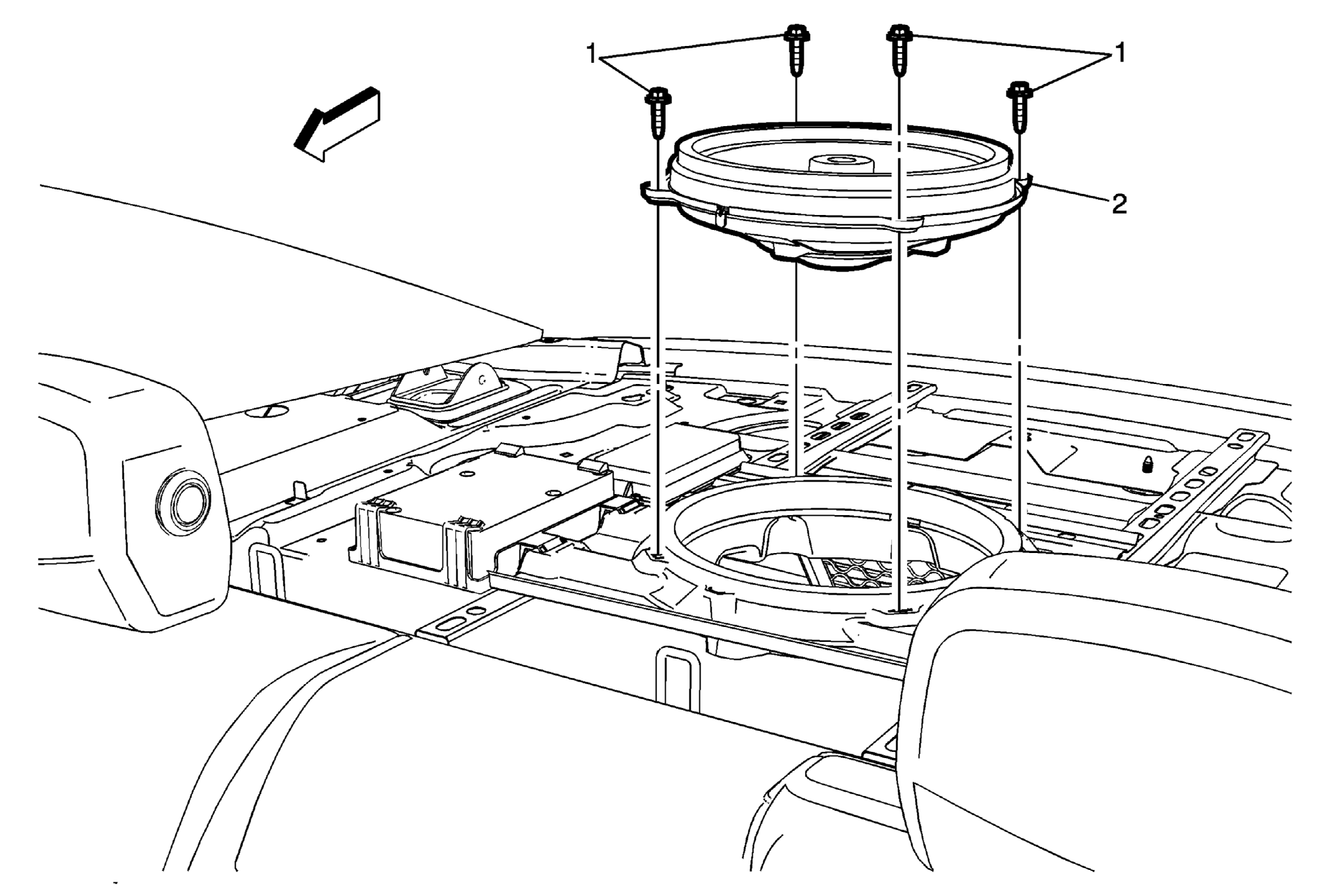

Fig 1: Radio Rear Speaker & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Without DB3) , Rear Window Panel Trim Replacement (With DB3) .
1	Radio Rear Speaker Fastener (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Radio Rear Speaker Procedure Disconnect the electrical connector.
