Radio Replacement

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

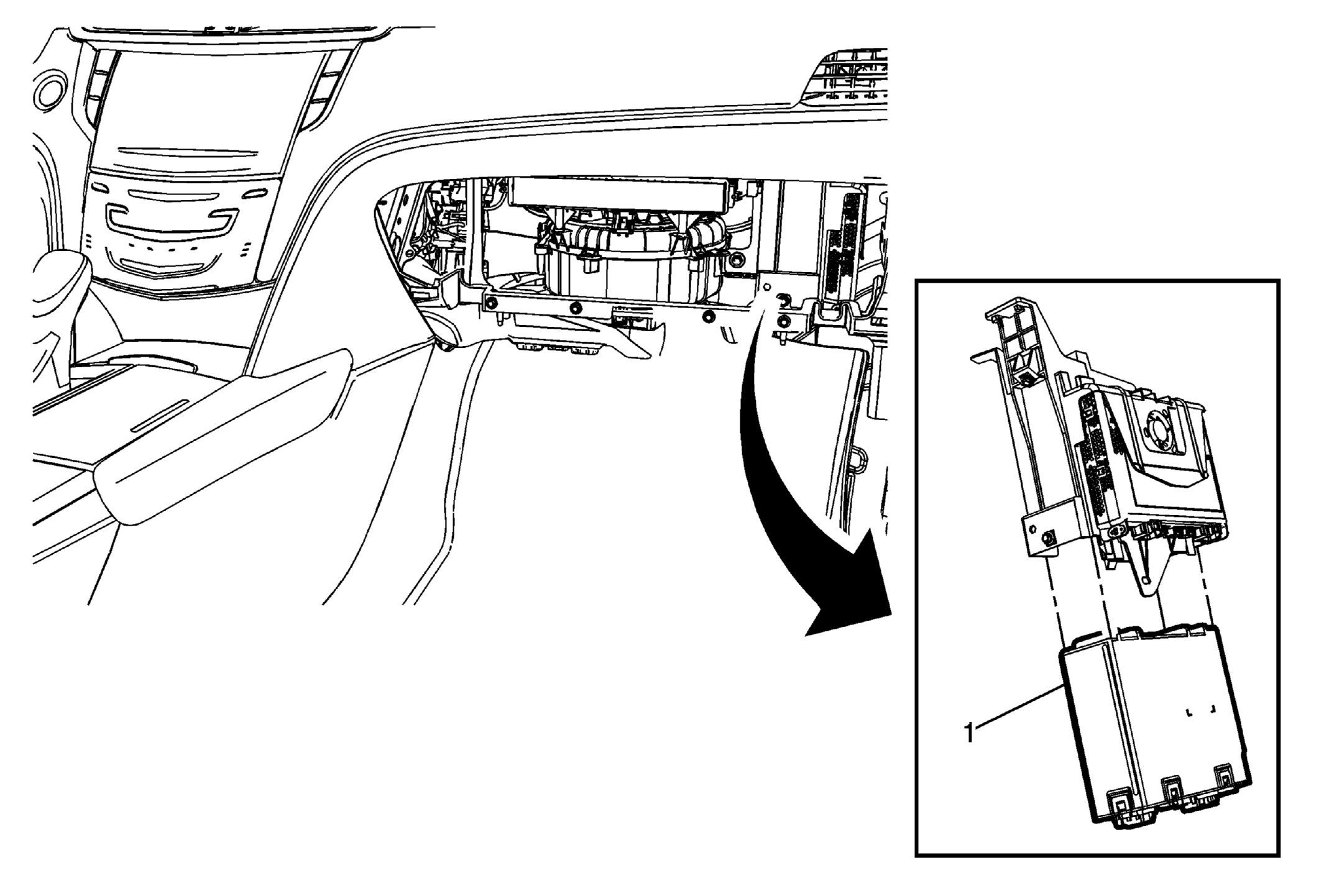

Fig 1: Radio

Courtesy of GENERAL MOTORS COMPANY

Radio Replacement

Callout	Component Name
Preliminary Procedure Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement Remove the instrument panel insulator panel - right side. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
1	Radio Procedure Disconnect the electrical connections. Slide module downward to release from bracket. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure

Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement
Remove the instrument panel insulator panel - right side. Refer to Instrument Panel Insulator Panel Replacement - Right Side .

Radio

Procedure

Disconnect the electrical connections.
Slide module downward to release from bracket.
Refer to Control Module References for programming and setup information.
