Radio Speaker Replacement

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

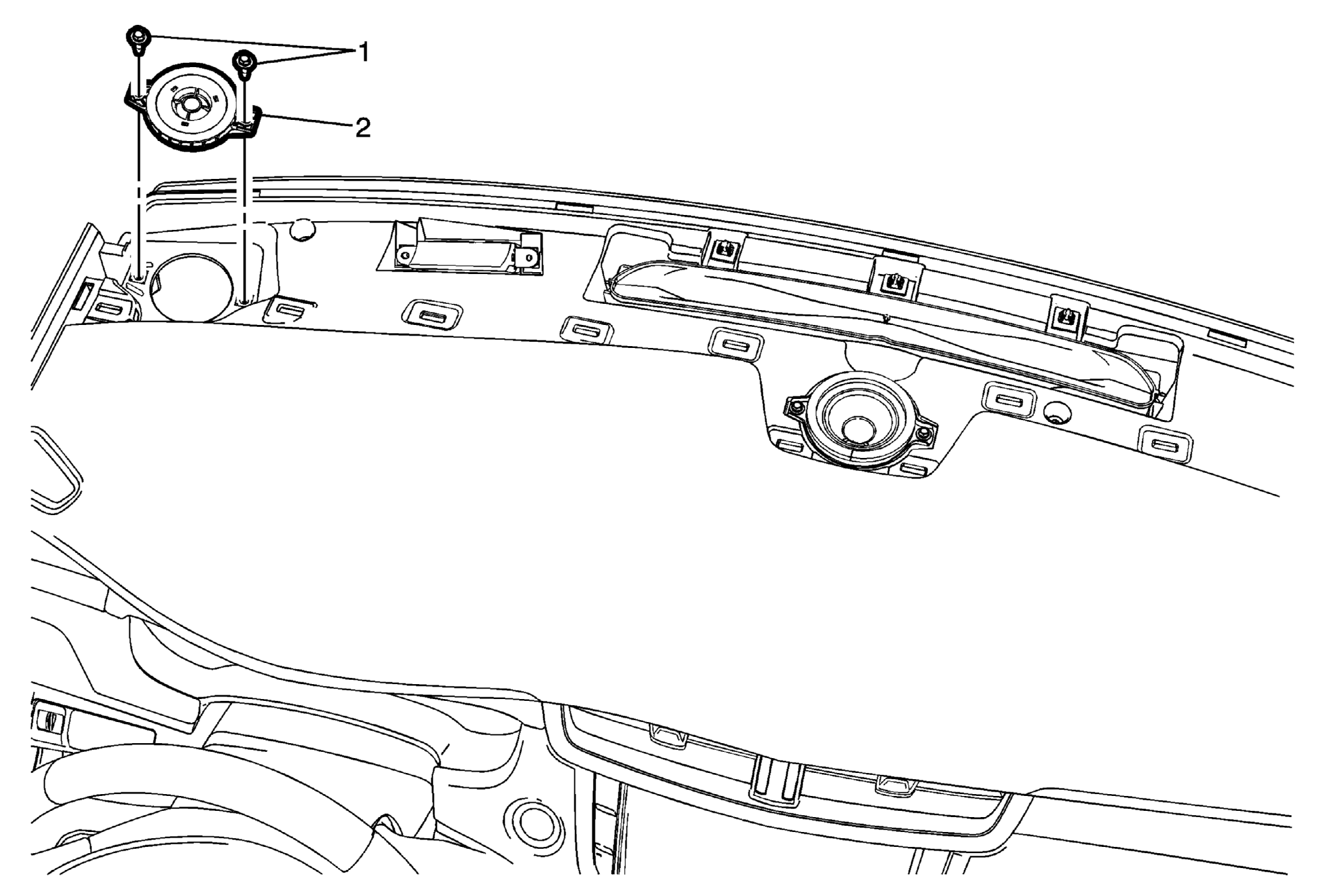

Fig 1: Radio Speaker & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield defroster nozzle grille. Refer to Windshield Defroster Nozzle Grille Replacement .
1	Radio Speaker Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Radio Speaker Procedure Disconnect the electrical connector.
