Front Object Sensors

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

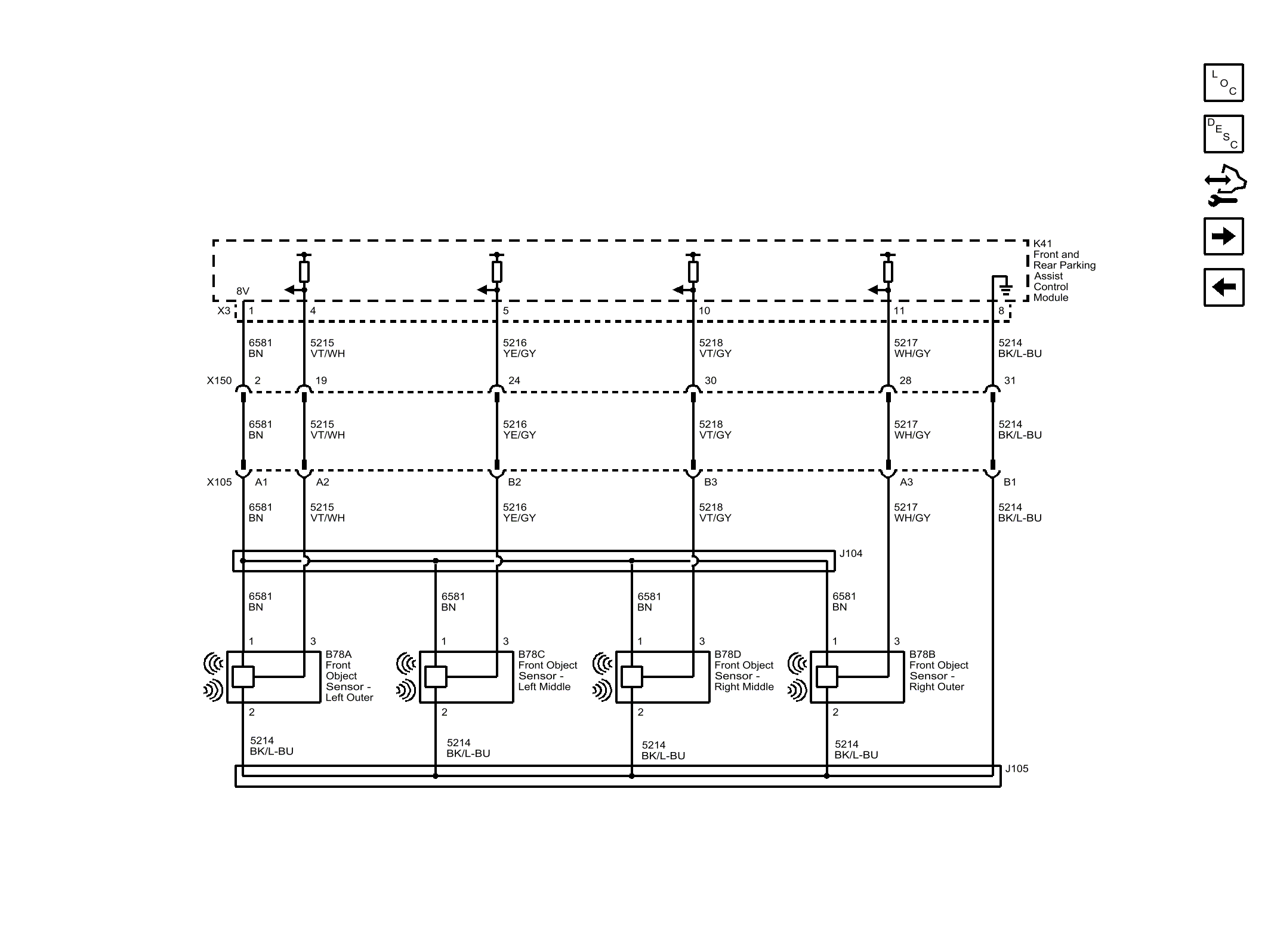

Fig 1: Front Object Sensors Wiring Schematic
GM2770613Courtesy of GENERAL MOTORS COMPANY
