Rearview Camera (UVC)

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

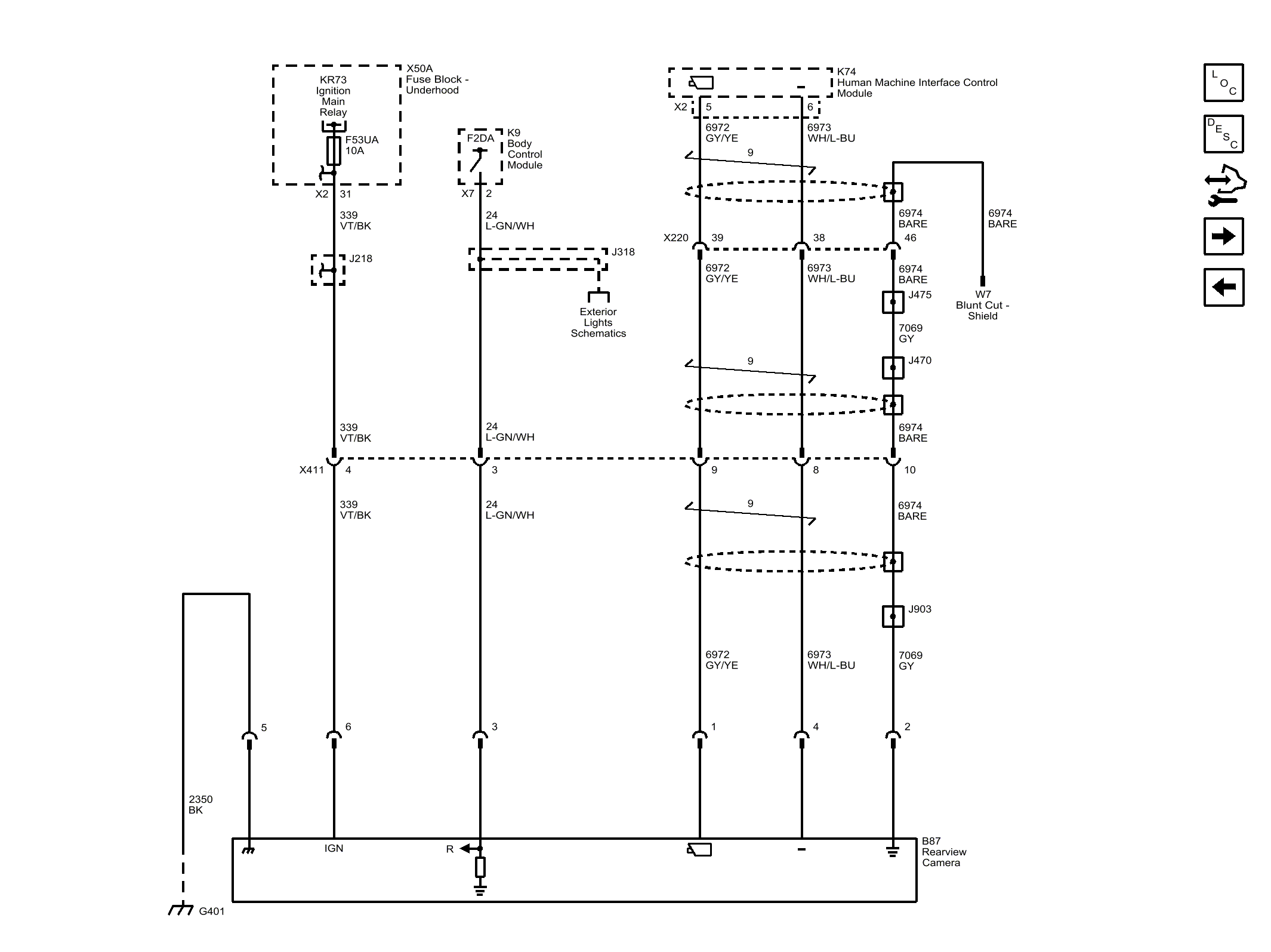

Fig 1: Rearview Camera Wiring Schematic (UVC)
GM2770619Courtesy of GENERAL MOTORS COMPANY
