Passive Entry

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

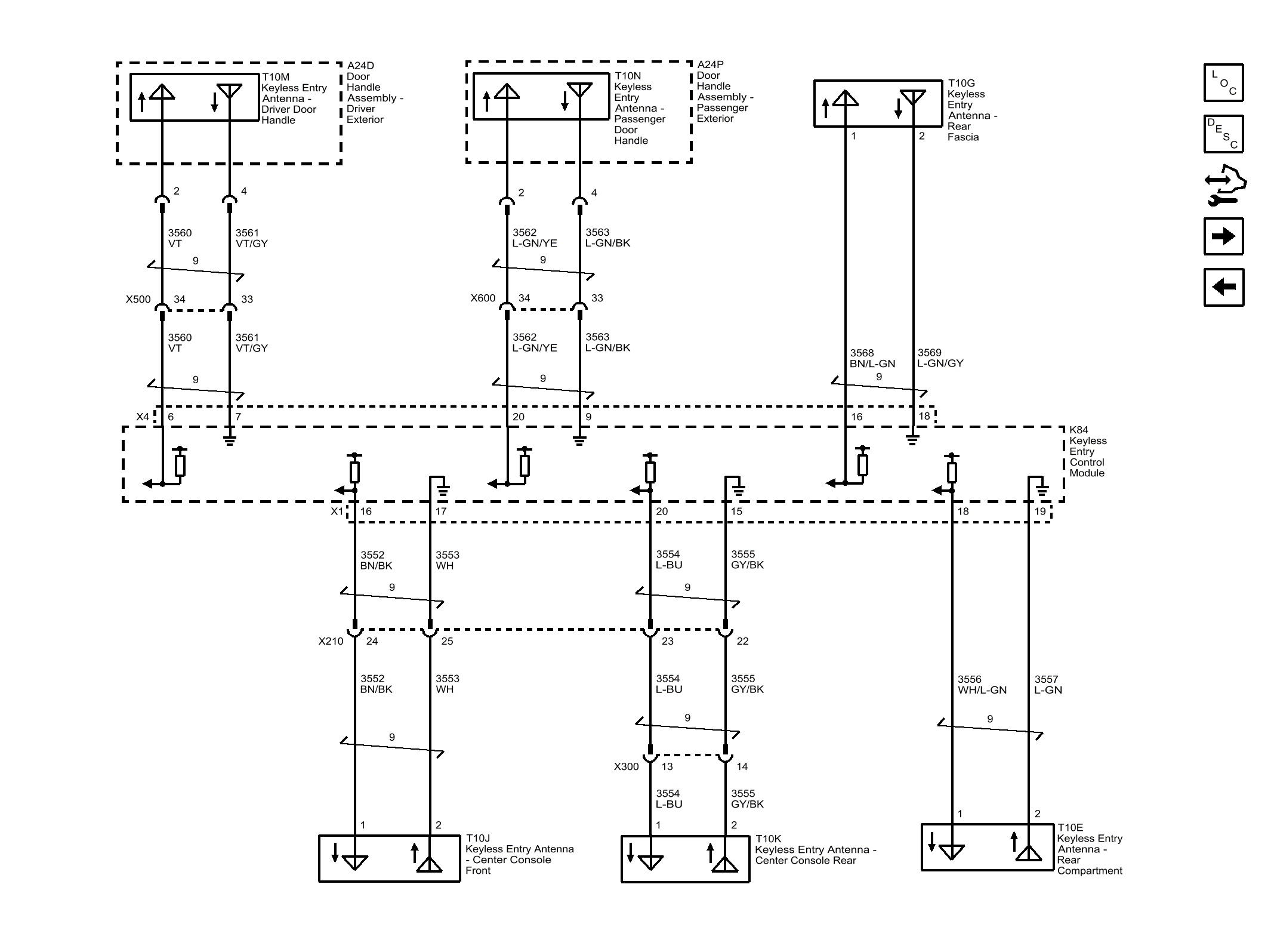

Fig 1: Passive Entry Wiring Schematic
GM2770999Courtesy of GENERAL MOTORS COMPANY
