Plenum Water Deflector Support Replacement

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

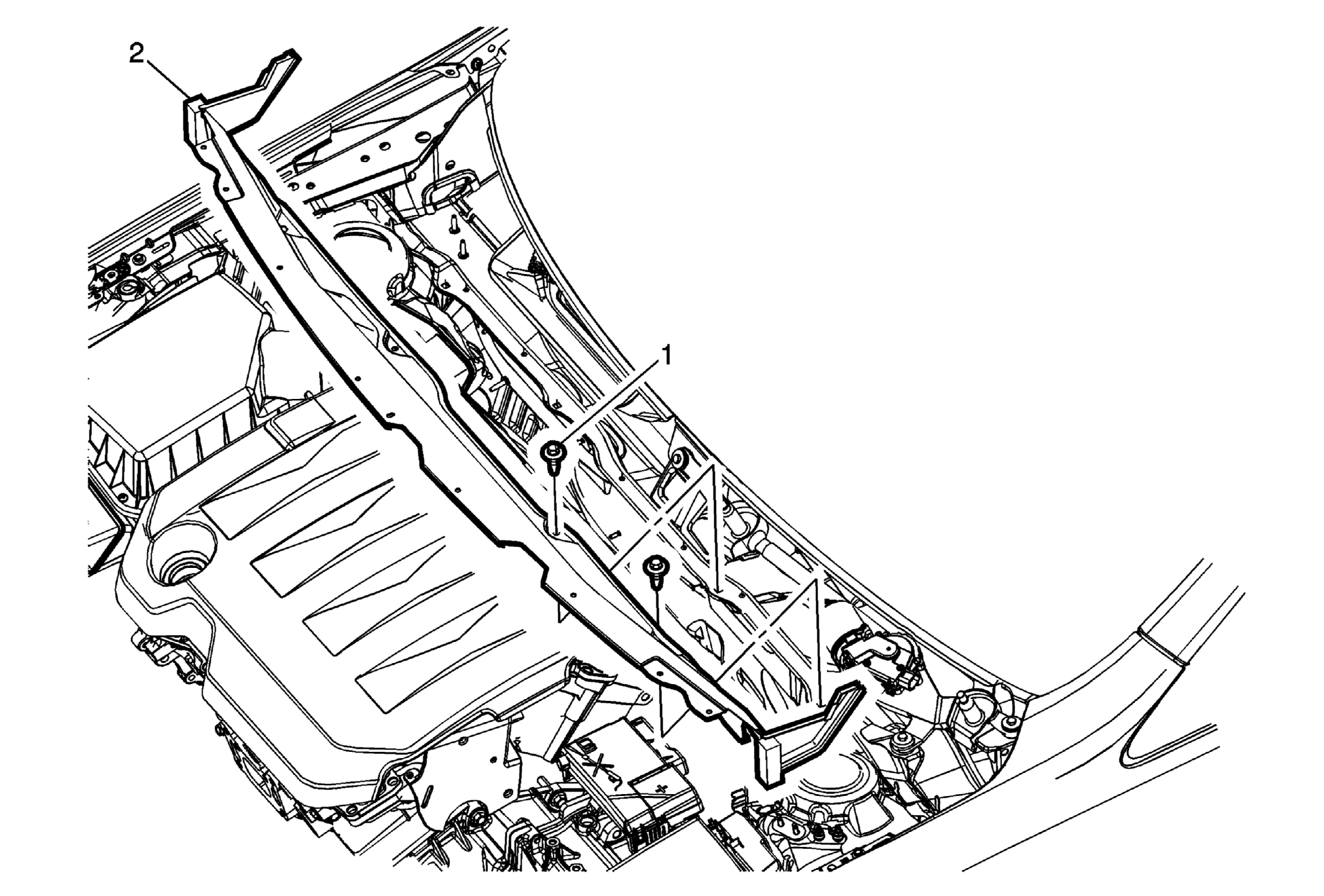

Fig 1: Plenum Water Deflector Support & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air inlet grille panel air deflector. Refer to Air Inlet Grille Panel Air Deflector Replacement .
1	Plenum Water Deflector Support Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Plenum Water Deflector Support Procedure Release forward lamp wiring harness from plenum water deflector support. Pull plenum water deflector support forward to remove from vehicle.

Callout

Component Name

Preliminary Procedure
Remove the air inlet grille panel air deflector. Refer to Air Inlet Grille Panel Air Deflector Replacement .

Plenum Water Deflector Support Bolts (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Plenum Water Deflector Support

Procedure

Release forward lamp wiring harness from plenum water deflector support.
Pull plenum water deflector support forward to remove from vehicle.
