Windshield Outside Moisture/Ambient Light and Humidity Sensor Replacement

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

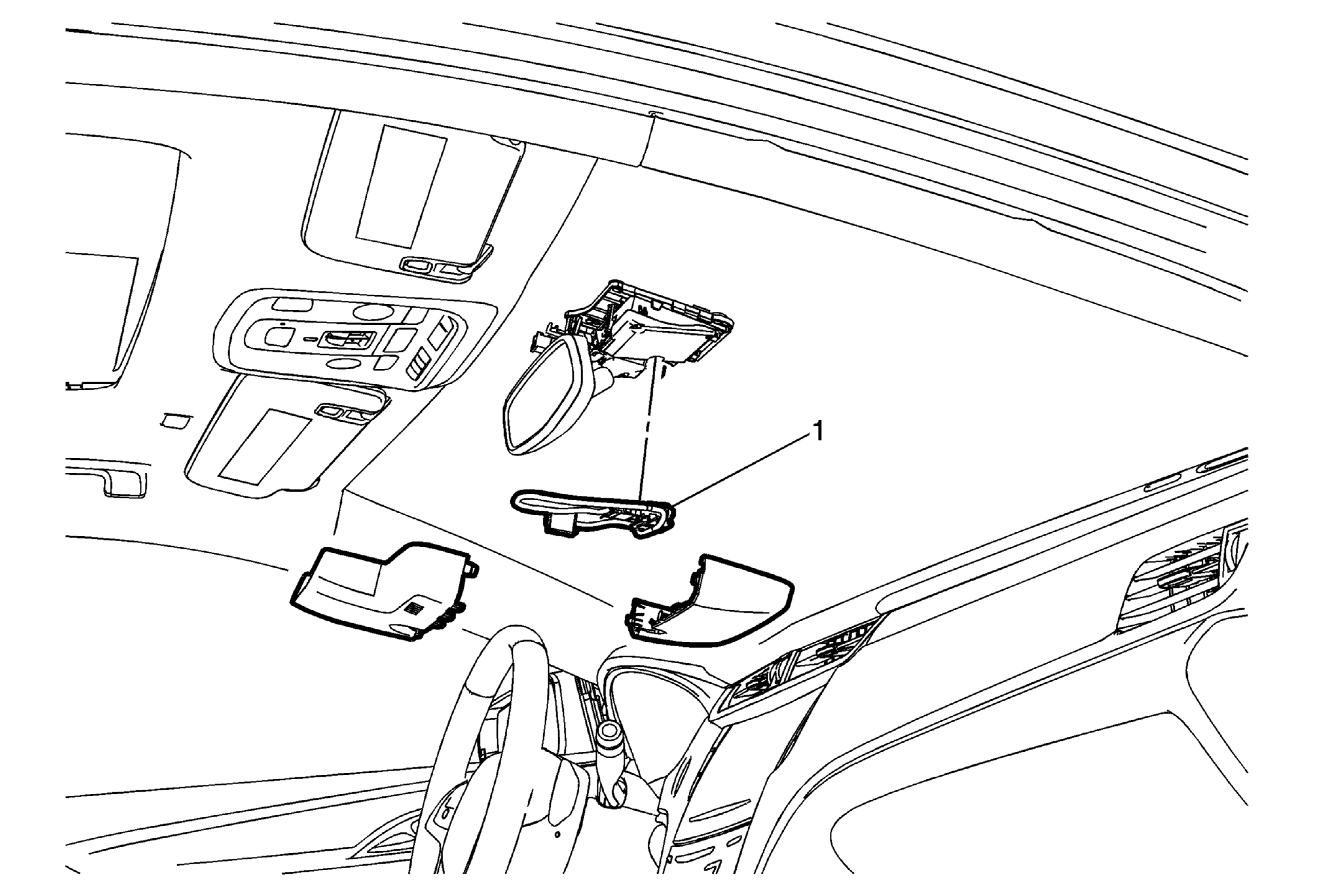

Fig 1: Windshield Outside Moisture/Ambient Light and Humidity Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the windshield multifunction sensor mounting bracket lower cover. Refer to Windshield Multifunction Sensor Mount Bracket Lower Cover Replacement . Remove the windshield multifunction sensor mounting bracket cover. Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement . Remove the inside rearview mirror. Refer to Inside Rearview Mirror Replacement .
1	Windshield Outside Moisture/Ambient Light And Humidity Sensor Procedures Unlatch the windshield outside moisture/ambient light and humidity sensor from the inside rear view mirror support bracket. Disconnect the windshield outside moisture/ambient light and humidity sensor connector.

Callout

Component Name

Preliminary Procedures

Remove the windshield multifunction sensor mounting bracket lower cover. Refer to Windshield Multifunction Sensor Mount Bracket Lower Cover Replacement .
Remove the windshield multifunction sensor mounting bracket cover. Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement .
Remove the inside rearview mirror. Refer to Inside Rearview Mirror Replacement .

Windshield Outside Moisture/Ambient Light And Humidity Sensor

Procedures

Unlatch the windshield outside moisture/ambient light and humidity sensor from the inside rear view mirror support bracket.
Disconnect the windshield outside moisture/ambient light and humidity sensor connector.
