Windshield Washer Solvent Container Replacement
WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

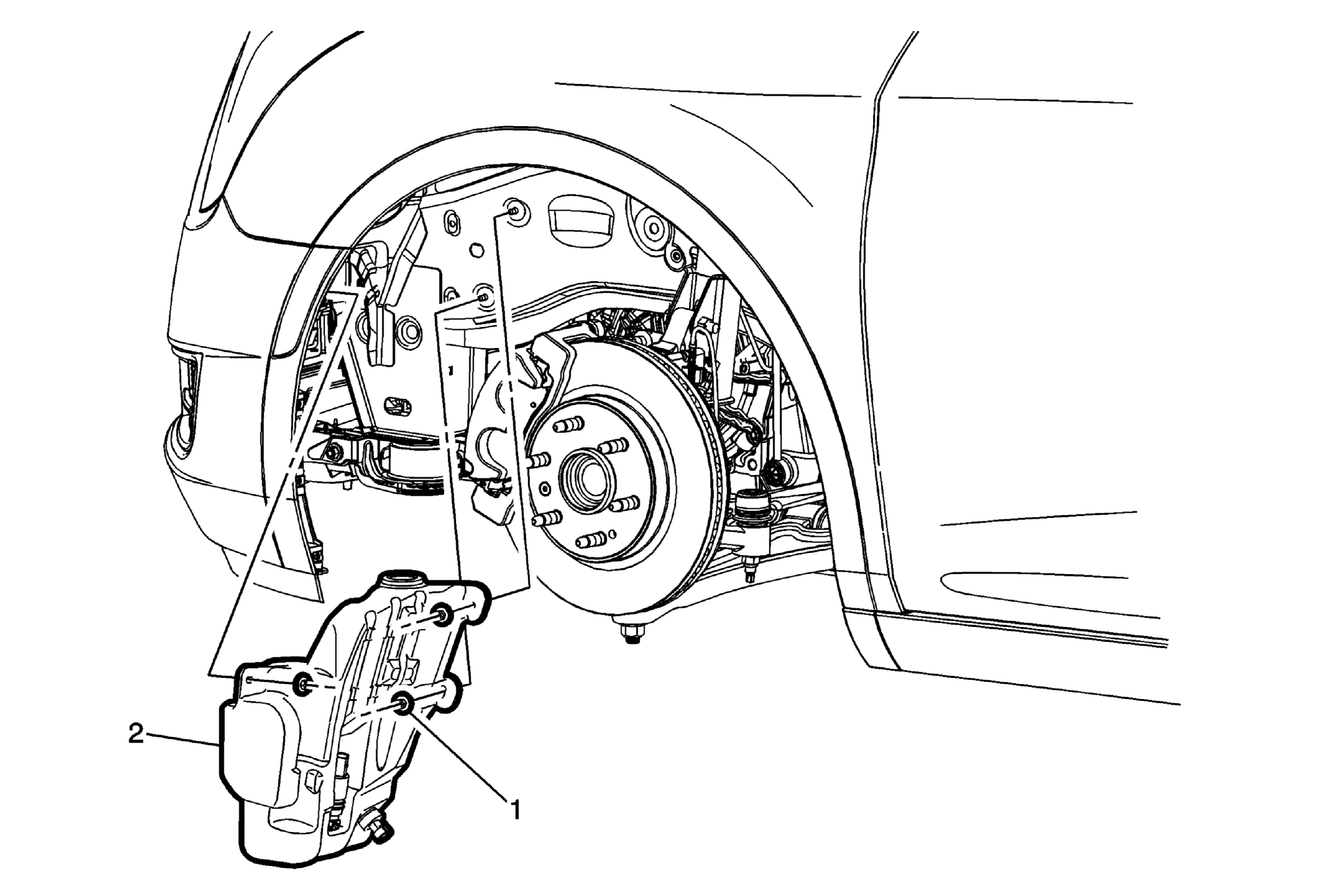

Courtesy of GENERAL MOTORS COMPANY Windshield Washer Solvent Container Replacement
| Callout |
Component Name |
|
Preliminary Procedure
- Remove the front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement
.
- Remove the windshield washer solvent container filler tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement .
|
| 1 |
Windshield Washer Solvent Container Nut (Qty: 3)
Tighten
9 N.m (80 lb in) |
| 2 |
Windshield Washer Solvent Container Procedure
- Place a clean suitable drain pan under the windshield washer pump area to recover the windshield washer solvent when the windshield washer hose is disconnected.
- Disconnect the electrical connector from the windshield washer pump.
- Disconnect the electrical connector from the windshield washer solvent level sensor.
- Remove the windshield washer solvent container from the vehicle.
- Empty the windshield washer solvent into a suitable clean container.
- Transfer parts as needed.
|
