Installation Procedure
WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

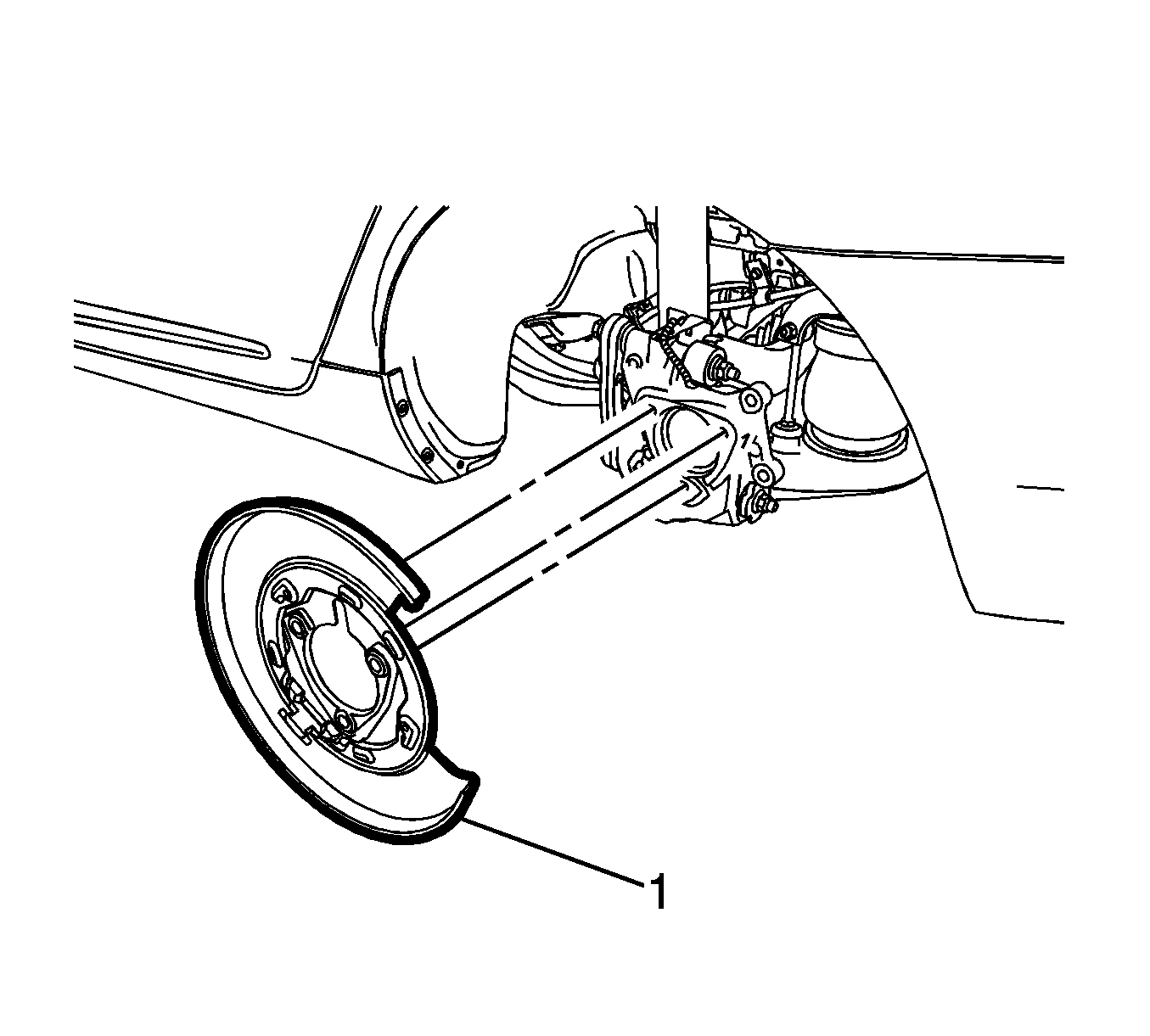

- Install the rear brake backing plate (1).
- Install the rear wheel bearing and hub assembly. Refer to Rear Wheel Bearing and Hub Replacement (FWD) , Rear Wheel Bearing and Hub Replacement (AWD) .
- Install the parking brake shoes. Refer to Parking Brake Shoe Replacement .
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (With J64) , Tire and Wheel Removal and Installation (With J55) .
