Side Object Detection (UFT)

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

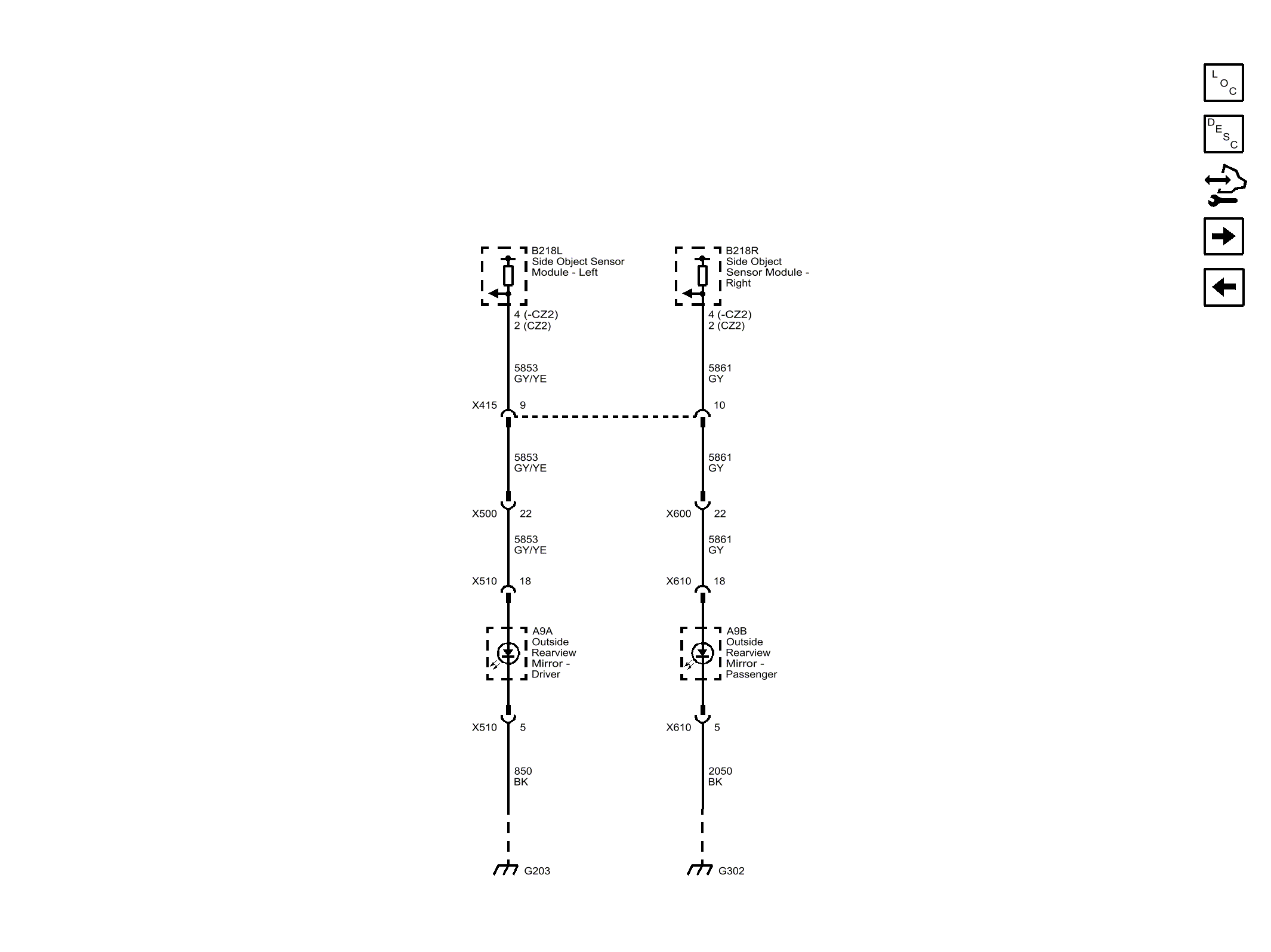

Fig 1: Side Object Detection Wiring Schematic (UFT)
GM2857067Courtesy of GENERAL MOTORS COMPANY
