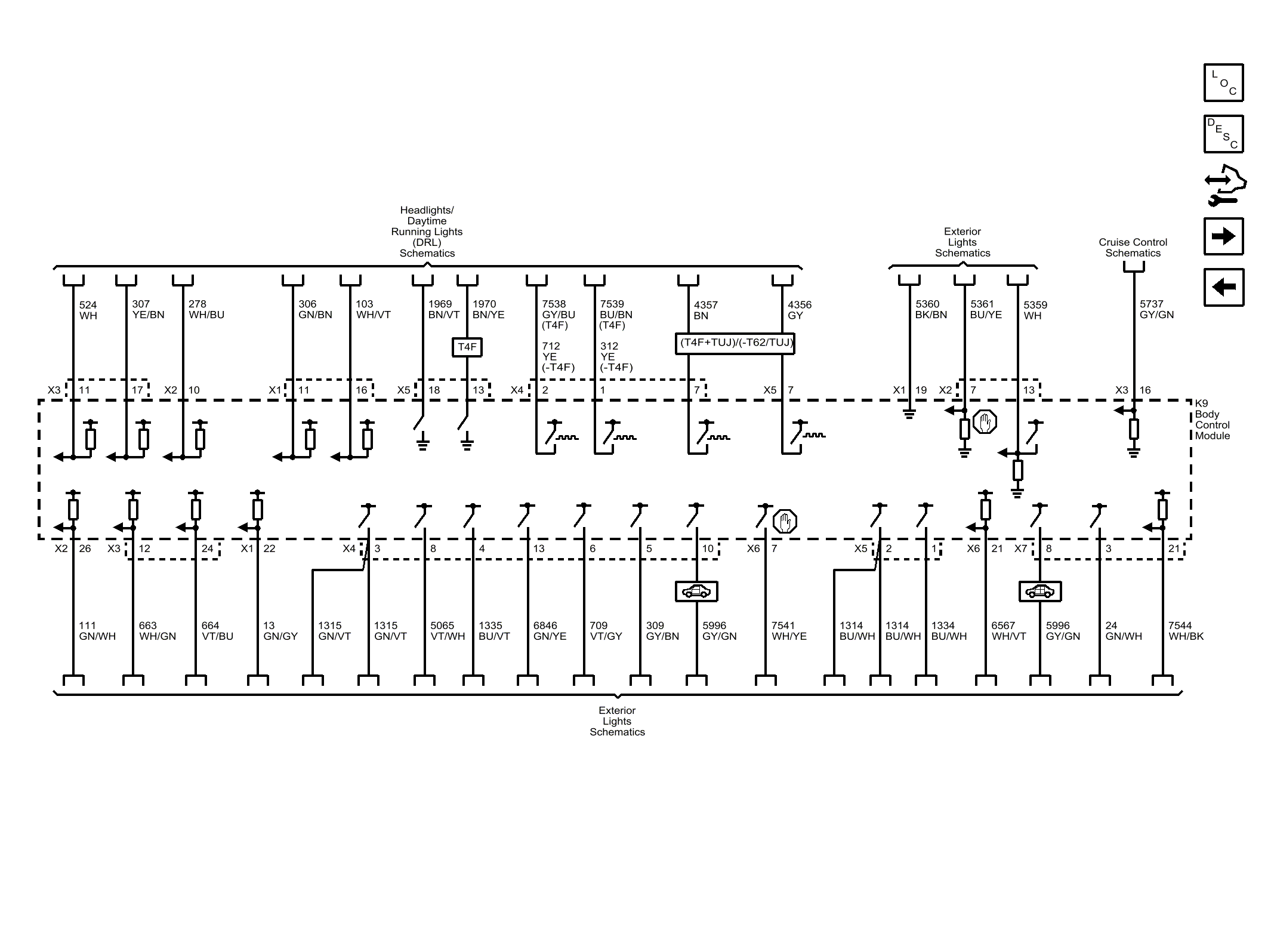

Home › Cadillac › 2015 › ATS Base, 2D Coupe, AWD › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Body Control System Wiring Schematics › System Reference (2 of 3)
