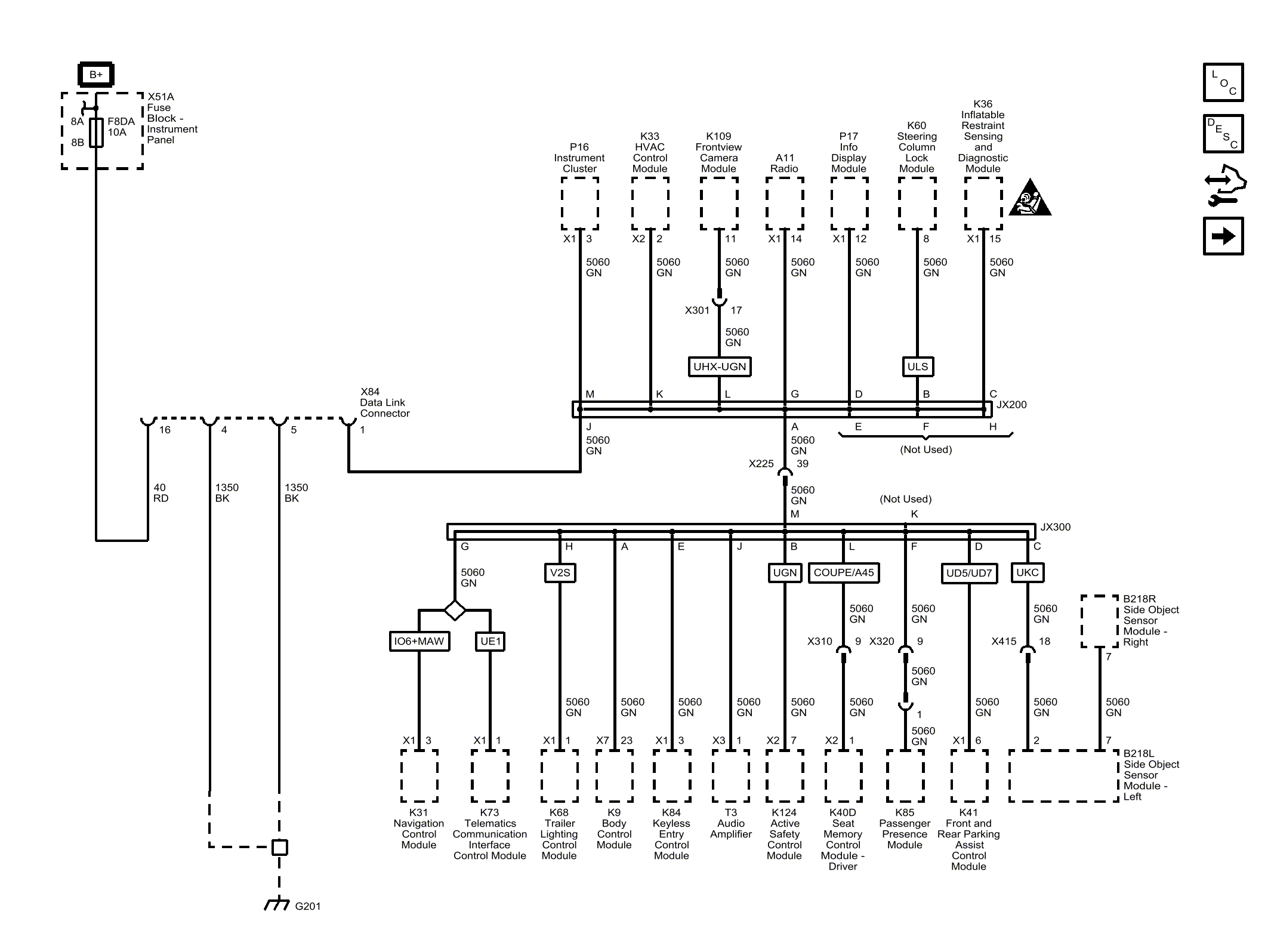

Home › Cadillac › 2015 › ATS Base, 2D Coupe, AWD › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Low Speed GMLAN
