MOST Bus and Communication Enable

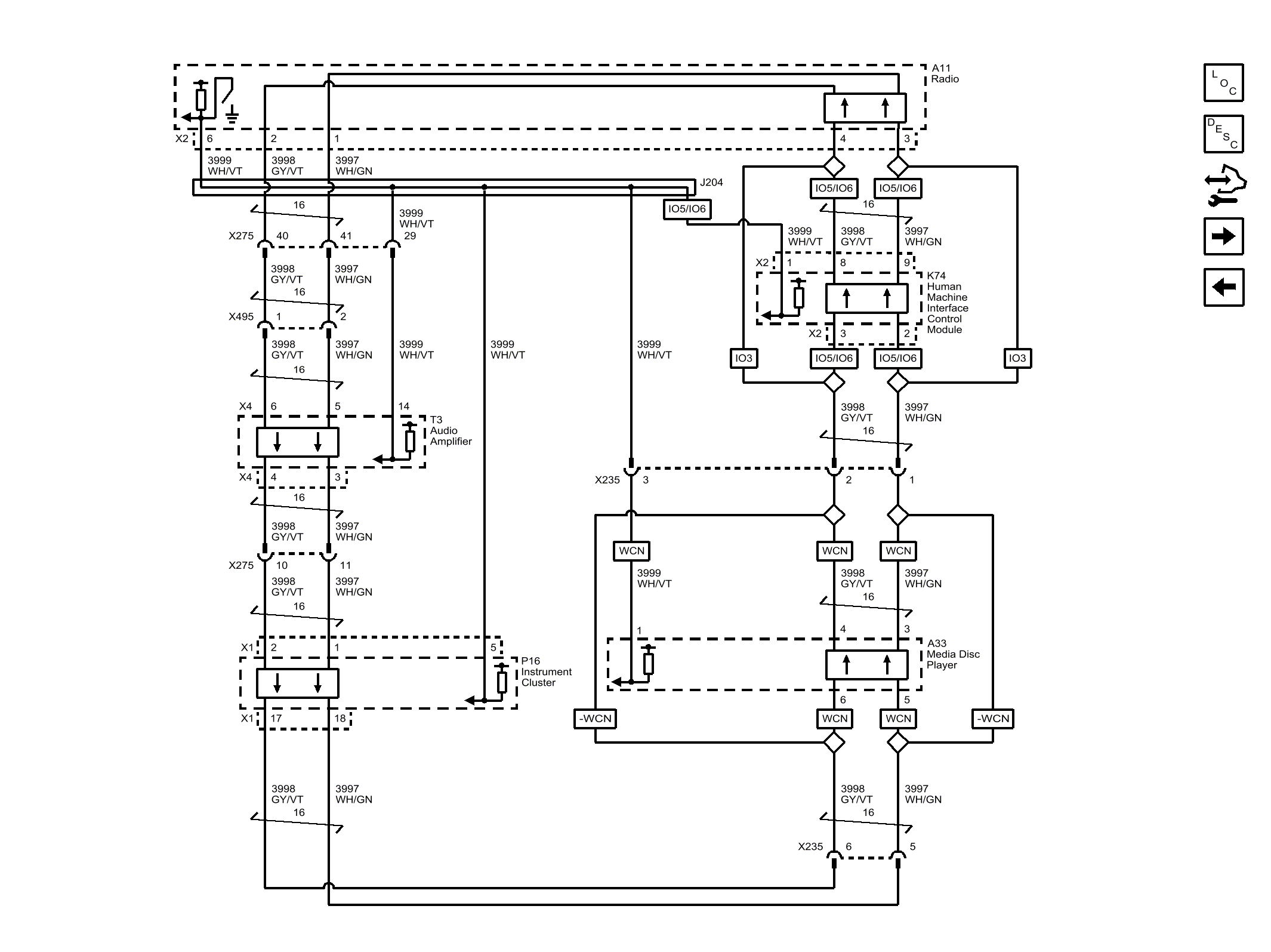

Fig 1: MOST Bus and Communication Enable
GM3687447Courtesy of GENERAL MOTORS COMPANY
