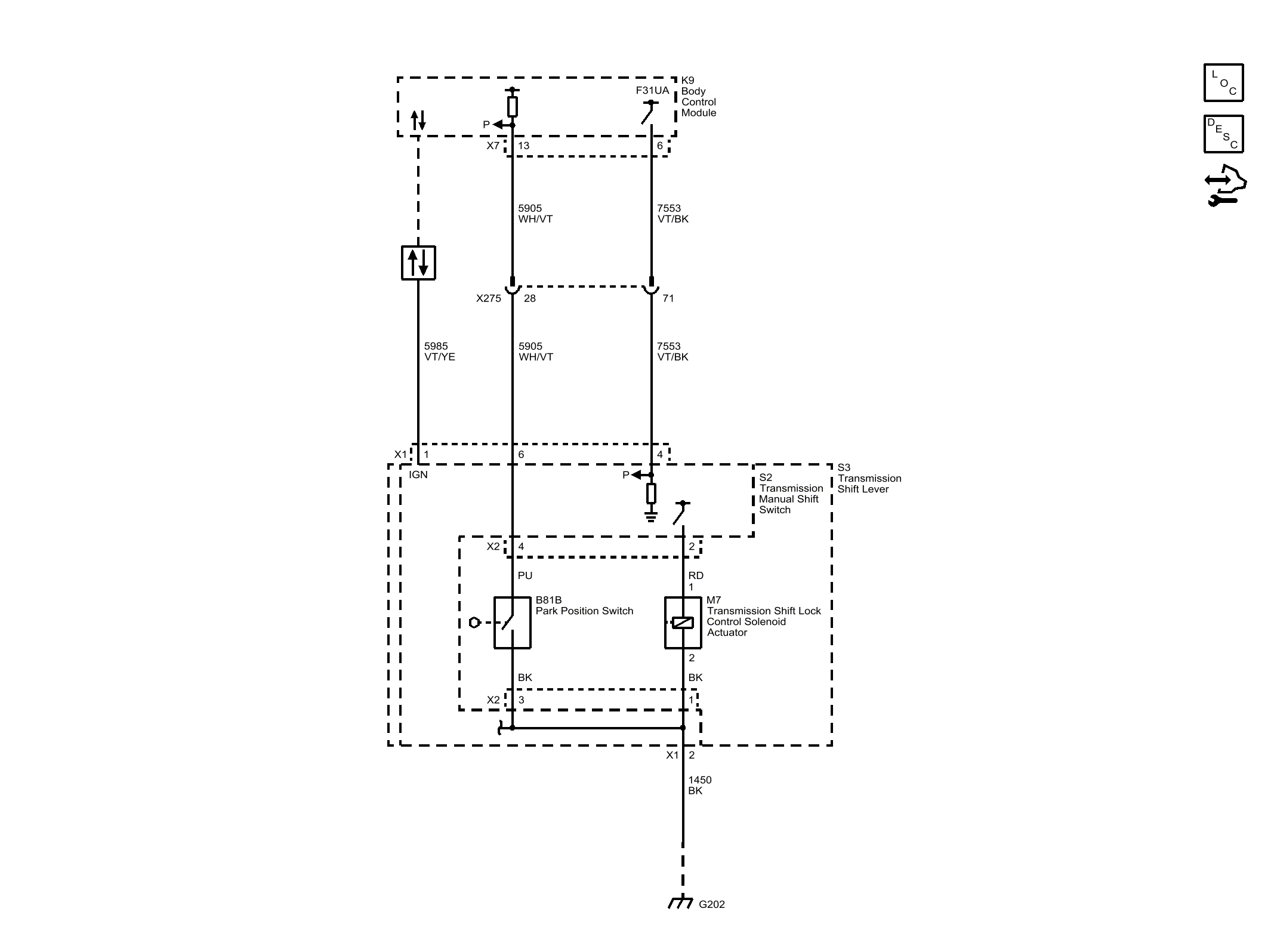

Home › Cadillac › 2015 › ATS Base, 2D Coupe, AWD › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock Control (MYA)
