Keyless Entry - Passive, and Keyless Start

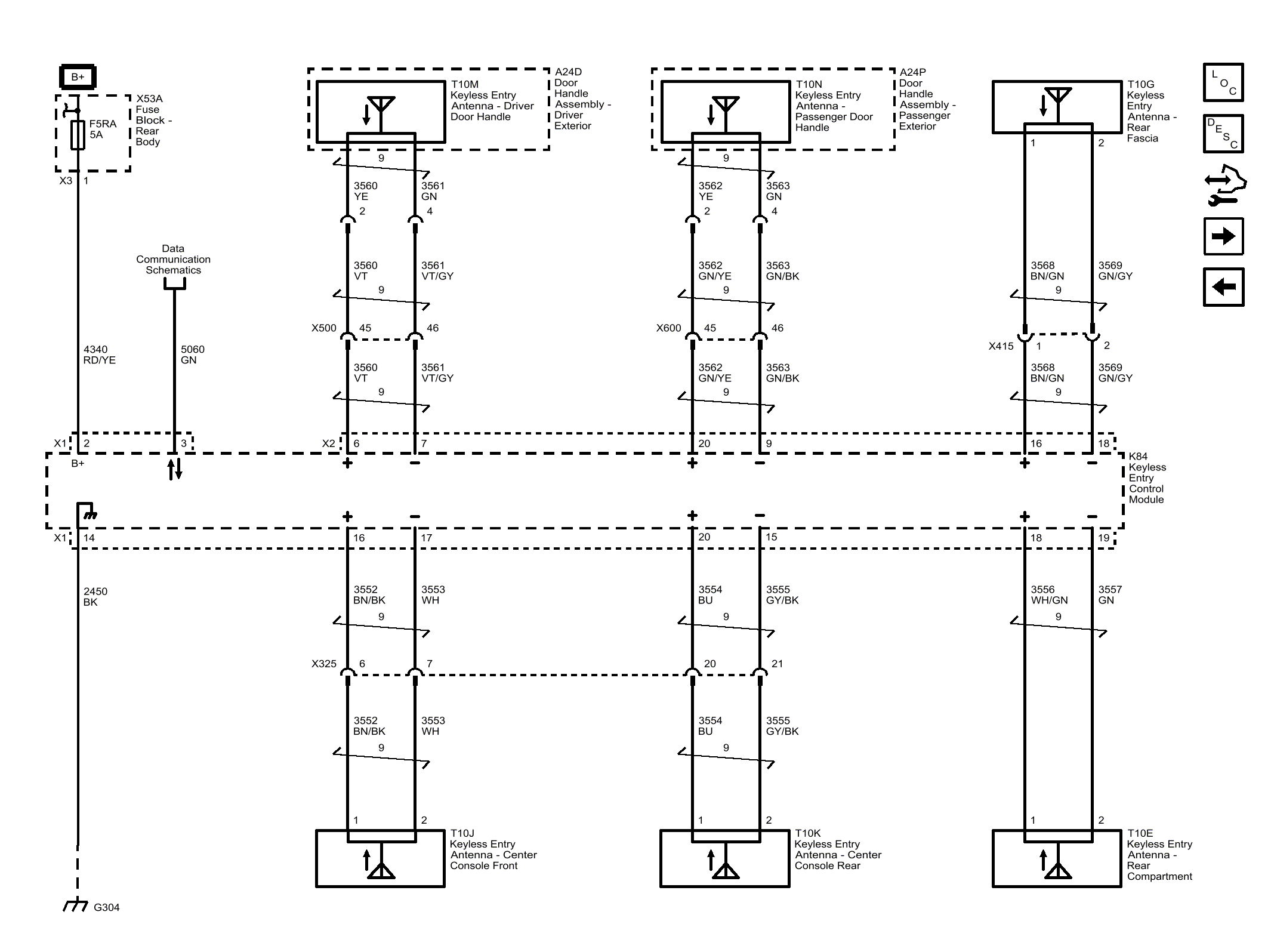

Fig 1: Keyless Entry - Passive, and Keyless Start
GM3705776Courtesy of GENERAL MOTORS COMPANY
