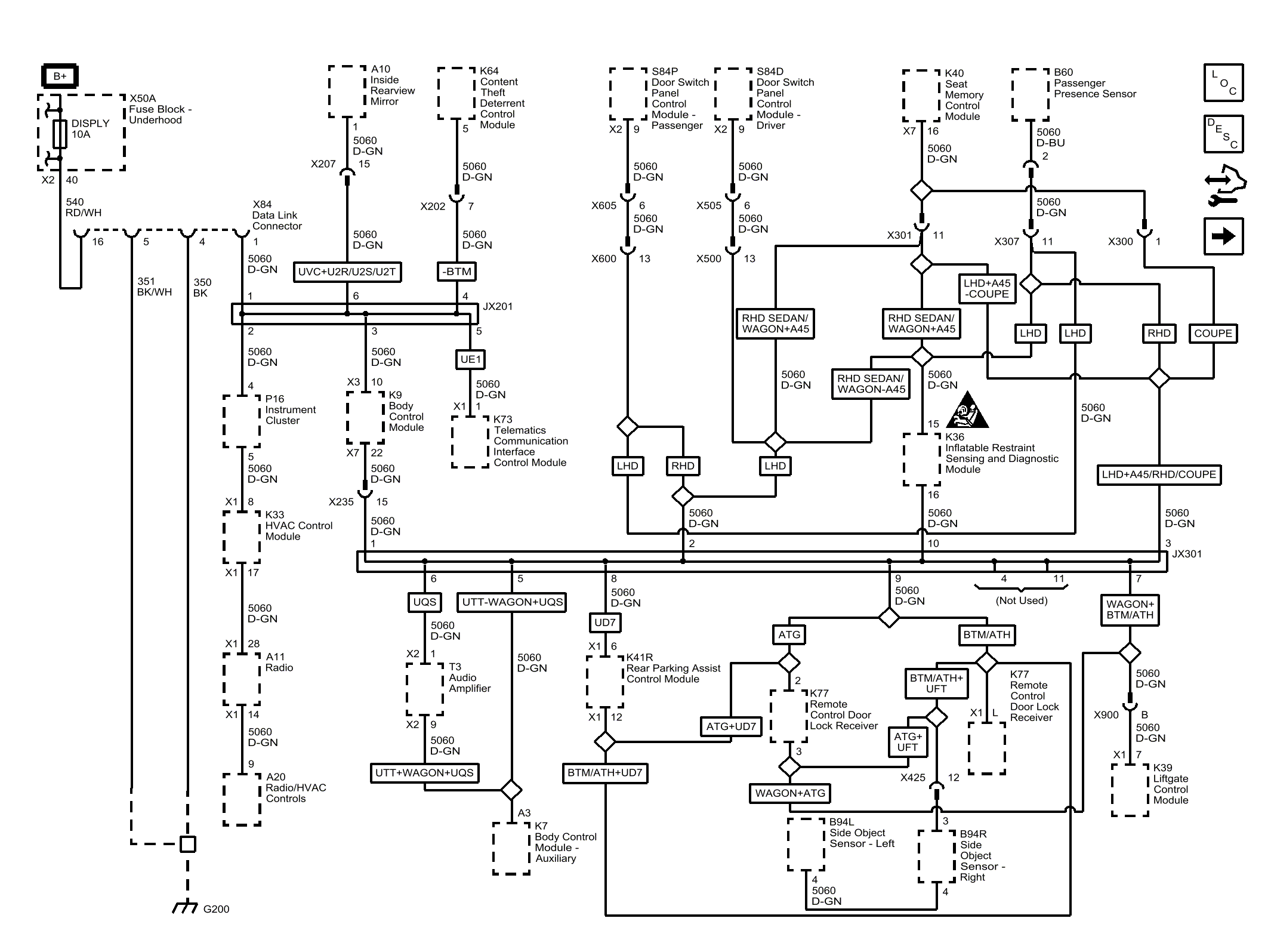

Home › Cadillac › 2015 › CTS V, Automatic Trans › Repair and Diagnosis › Engine Performance › System › Data Communication System (Coupe) › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Low Speed GMLAN
