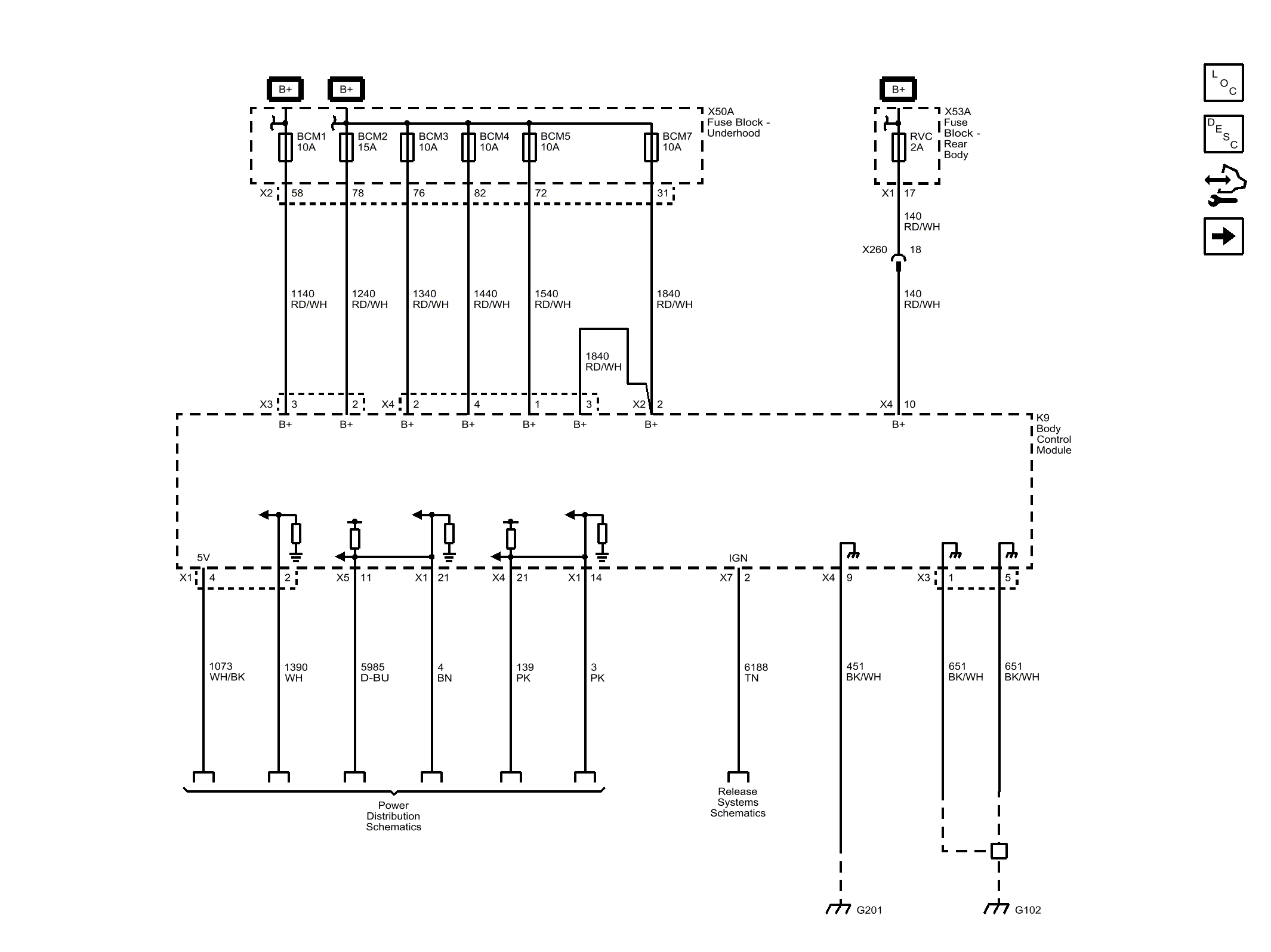

Home › Cadillac › 2015 › CTS V, Automatic Trans › Repair and Diagnosis › Engine Performance › Testing & Diagnosis › Data Communication System (Coupe) › Schematic Wiring Diagrams › Body Control System Wiring Schematics › Module Power and Ground
