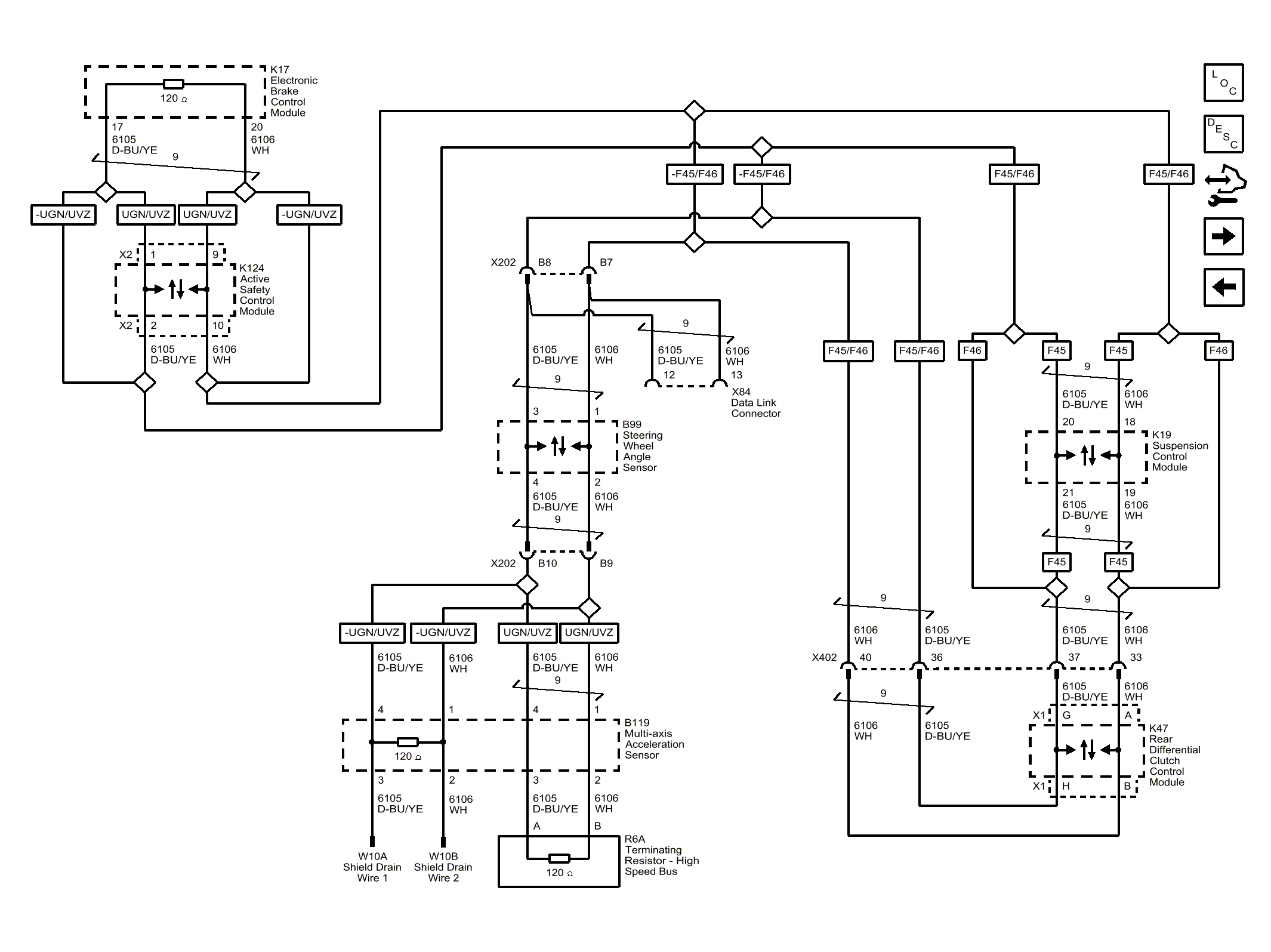

Home › Cadillac › 2015 › SRX Base, 4D Utility › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Chassis Expansion Bus
