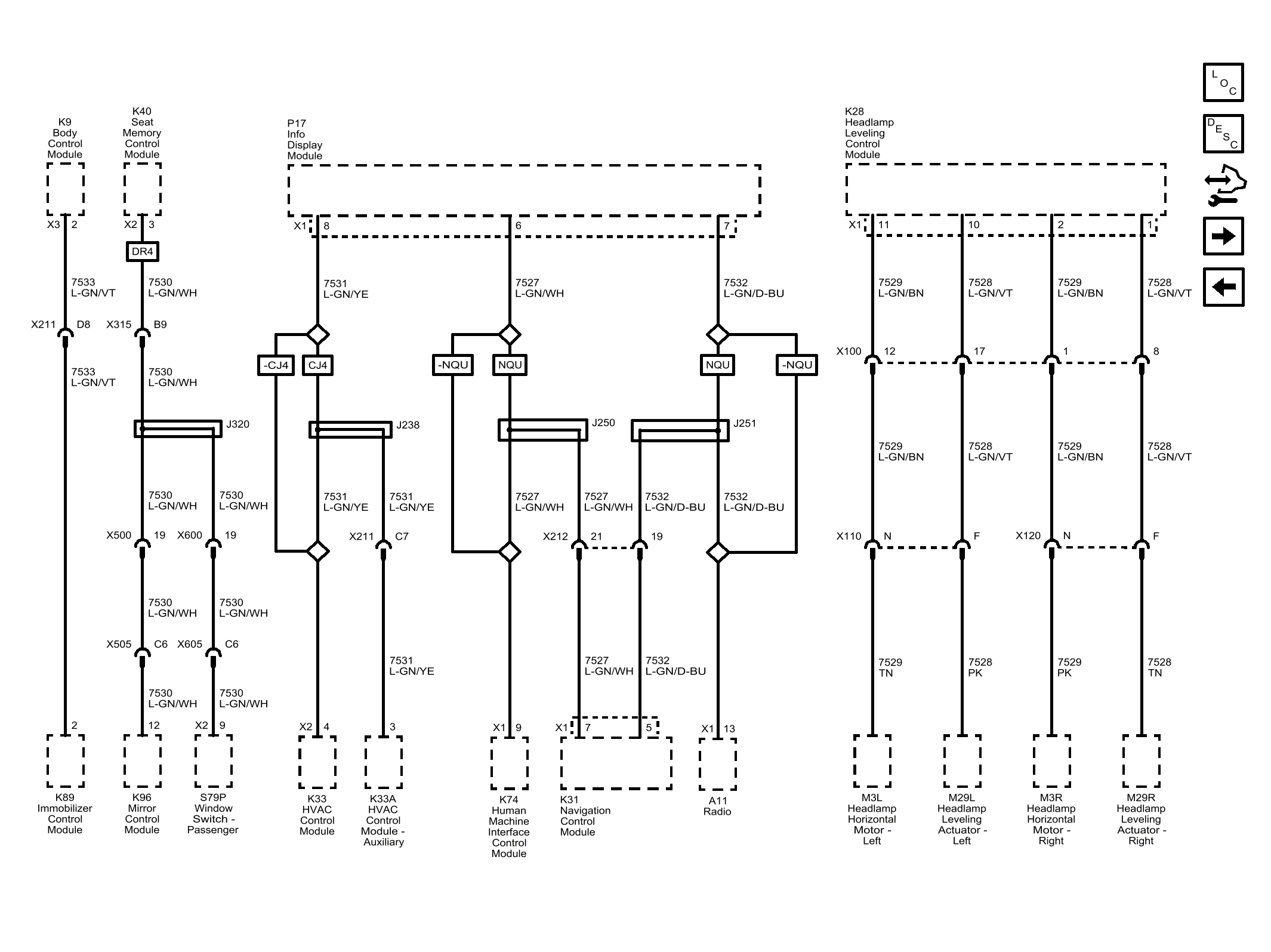

Home › Cadillac › 2015 › SRX Performance, 4D Utility, AWD › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Mid Speed GMLAN
