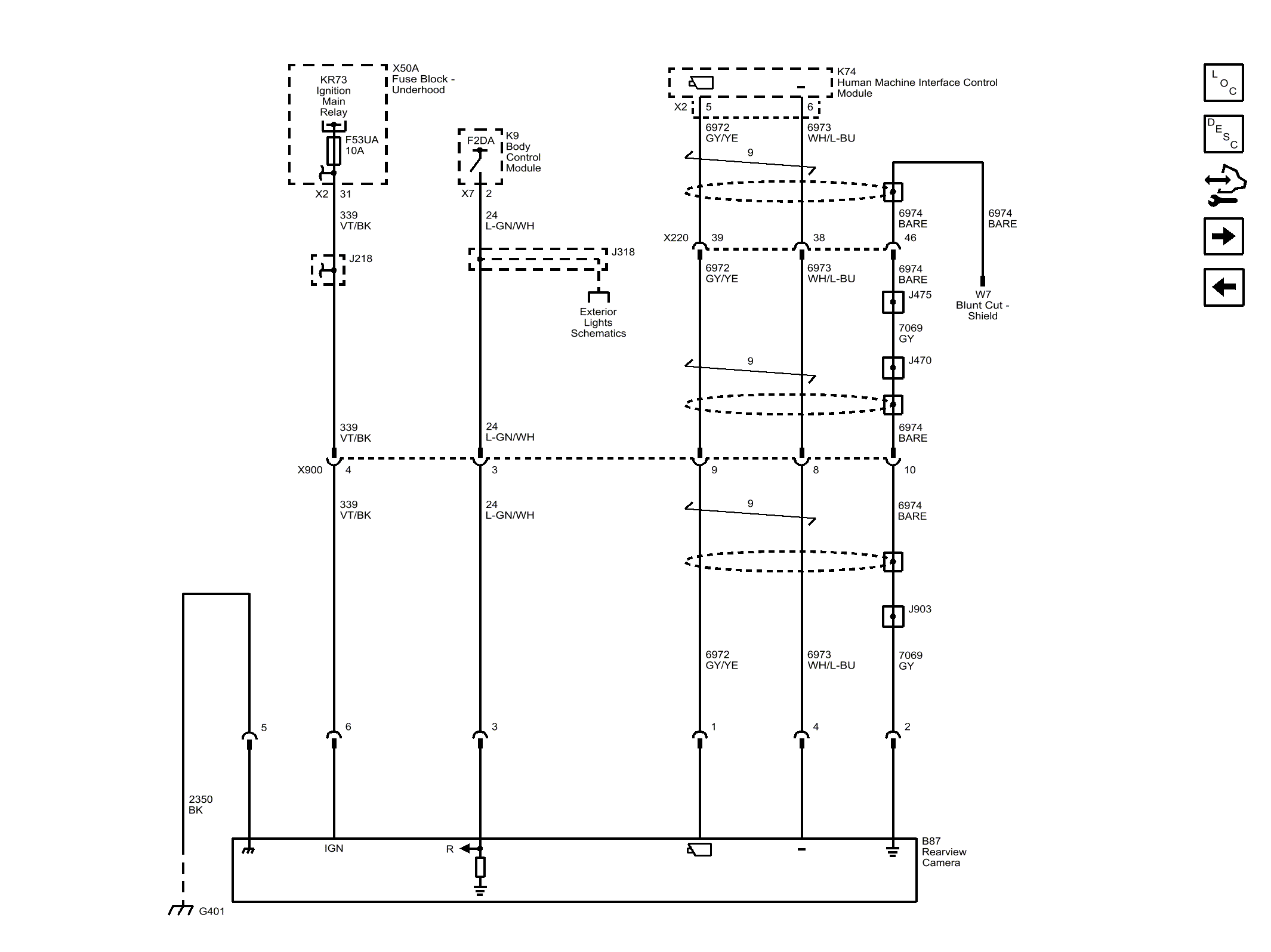

Home › Cadillac › 2015 › XTS Base › Repair and Diagnosis › Accessories & Equipment › Collision/Avoidance › Object Detection System And Pedestrian Protection System › Schematic Wiring Diagrams › Object Detection Wiring Schematics › Rearview Camera (UVC)
