Object Detection System And Pedestrian Protection System
›
Schematic Wiring Diagrams
›
Object Detection Wiring Schematics
›
Multifunction Switches (UGN/UVZ)
Multifunction Switches (UGN/UVZ)

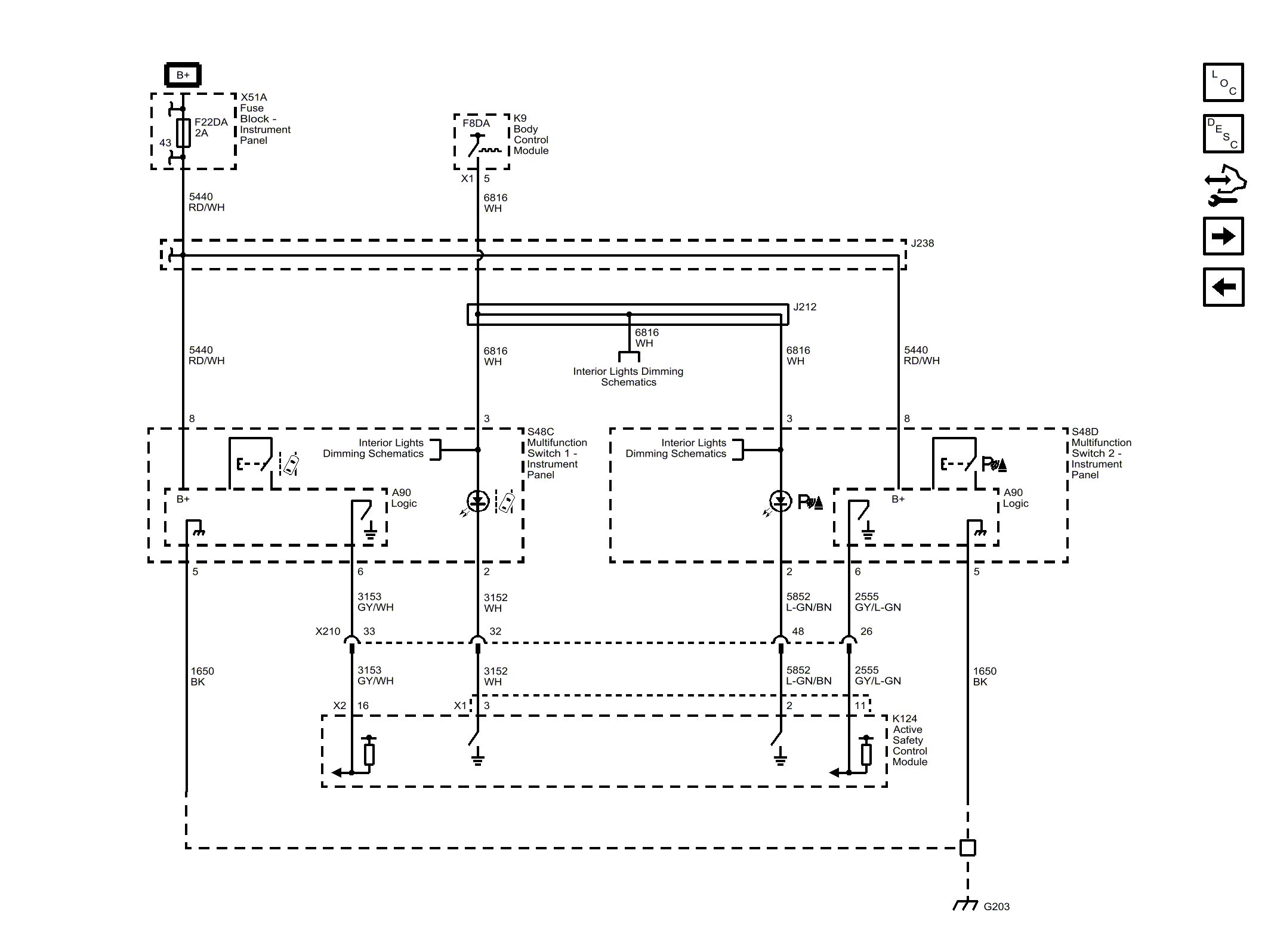

Fig 1: Multifunction Switches (UGN/UVZ)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
