Power, Ground and Serial Data (UGN/UVZ)

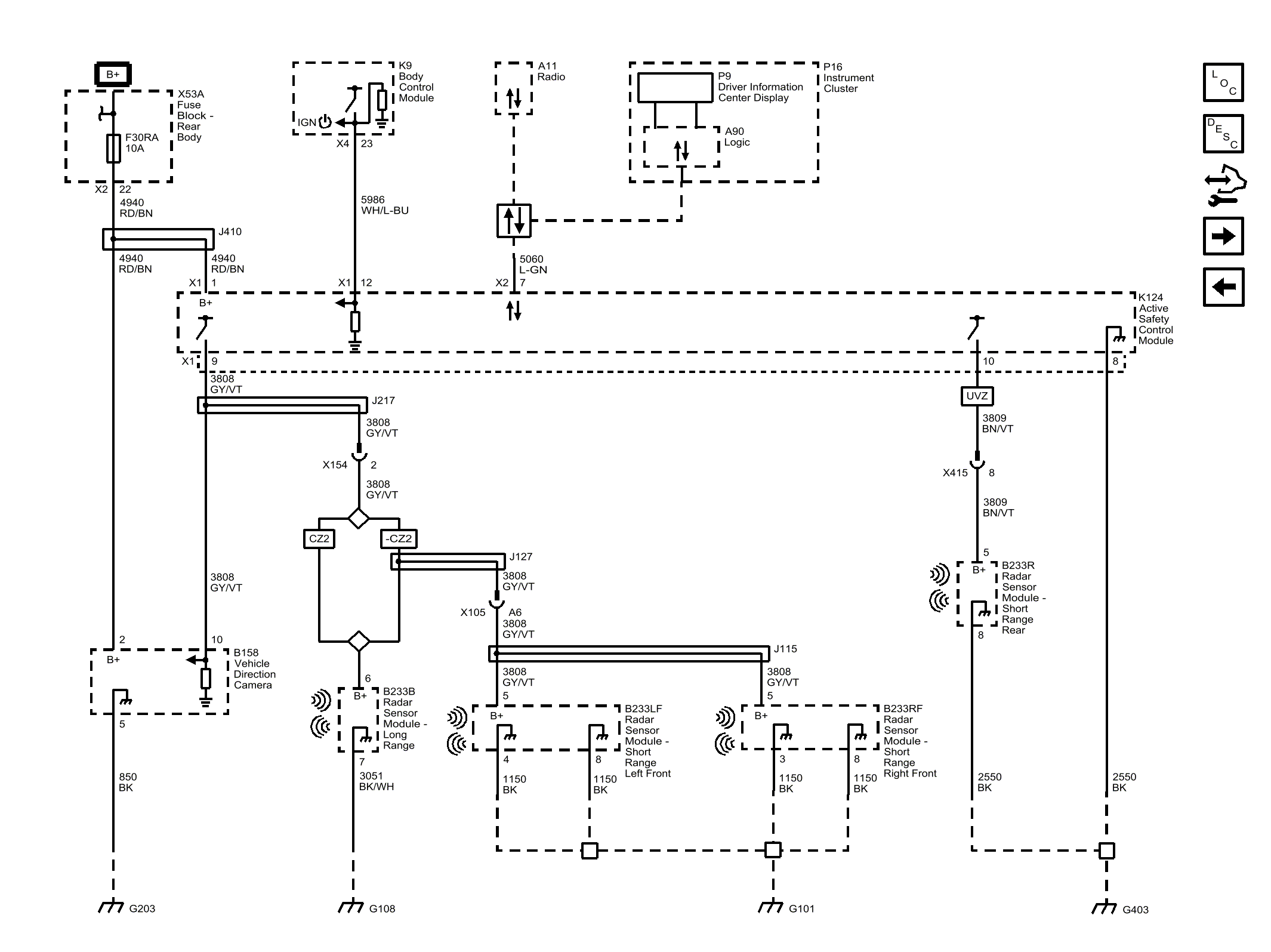

Fig 1: Power, Ground and Serial Data (UGN/UVZ)
GM3792948Courtesy of GENERAL MOTORS COMPANY
